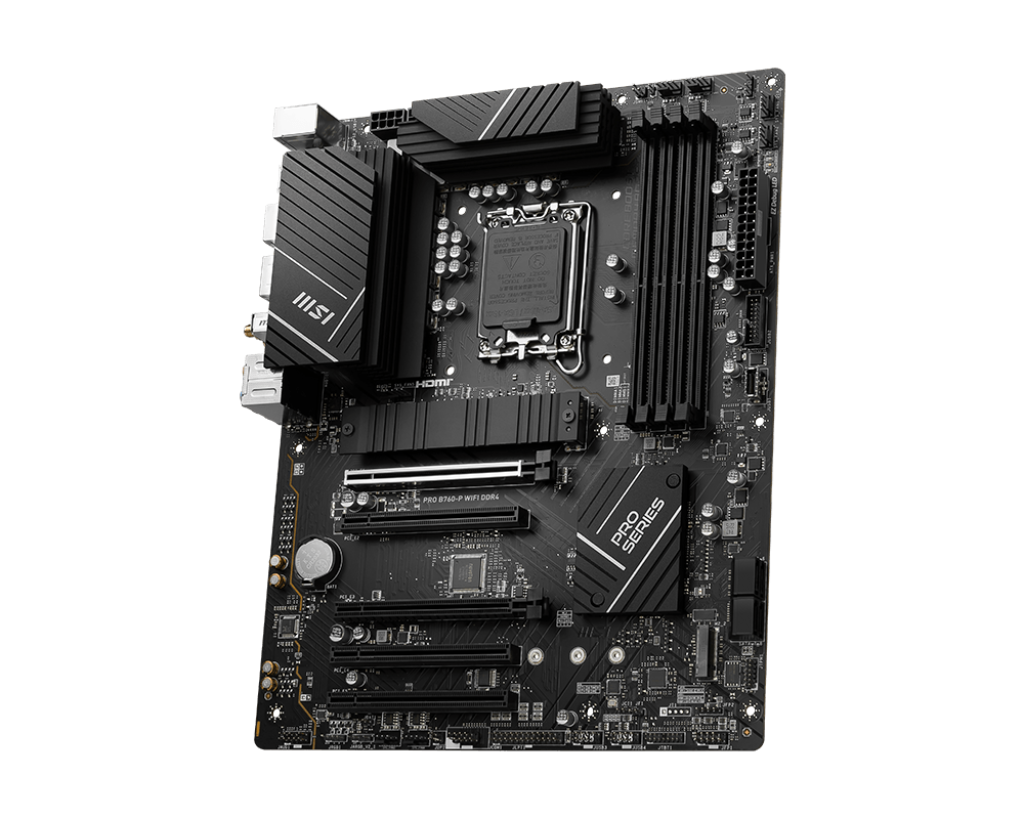

Placa de baza MSI PRO B760-P WIFI, Socket 1700, DDR4,
777,85 lei inclusiv TVA
Stoc epuizat
Placa de baza MSI PRO B760-P WIFI DDR4 LGA1700 SPECIFICATIONS Model Name PRO B760-P WIFI DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® B760 Chipset Expansion Slots 2x PCIe 4.0 x16 slots 3x PCIe 3.0 x1 slots Display Interface Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4 – Requires Processor Graphics Memory Support 4 DIMMs, Dual Channel DDR4-5333+MHz(OC) Storage 2x M.2 Gen4 x4 64Gbps slots, 4x SATA 6Gbps ports USB ports 3x USB 3.2 Gen 2 10Gbps (2 Type-A + 1 Type-C), 3x USB 3.2 Gen 1 5Gbps (2 Type-A + 1 Type-C), 8x USB 2.0 LAN Realtek® RTL8125BG 2.5G LAN WiFi / BT Intel® Wi-Fi 6E, Bluetooth 5.3 Audio 8-Channel (7.1) HD Audio with Audio Boost
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-FI | Yes |
| USB3 | 4-8 |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Windows operating systems supported | Windows 10, Windows 11 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| Audio Chip | Realtek ALC897 |
| On-board graphics card | No |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Model Chipset | B760 |
| Gaming | Nu |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| PS/2 ports quantity | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Processor socket | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | LGA 1700 |
| ECC сompatibility | Non-ECC |
| Motherboard chipset | Intel B760 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| PCI Express x16 slots | 5 |
| Chassis intrusion connector | Yes |
| USB 2.0 connectors | 4 |
| LAN controller | Realtek RTL8125-BG |
| System Management BIOS (SMBIOS) version | 3.5 |
| Number of chassis fan connectors | 1 |
| Number of SATA connectors | 4 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Audio connector | Yes |
| Supported memory clock speed (max) | 5333 MHz |
| Power fan connector | Yes |
| USB 2.0 ports quantity | 8 |
| MB-Format | ATX |
| MB-Socket | 1700 |
| RAM-Slots | 2 |
| PCI-Ex16 | 2 |
| PCI-Ex1 | 3 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cables included | SATA |
| Power source type | ATX |
| Width | 243.8 mm |
| Depth | 304.8 mm |
| Producator | MSI |
| Garantie | 36 |
