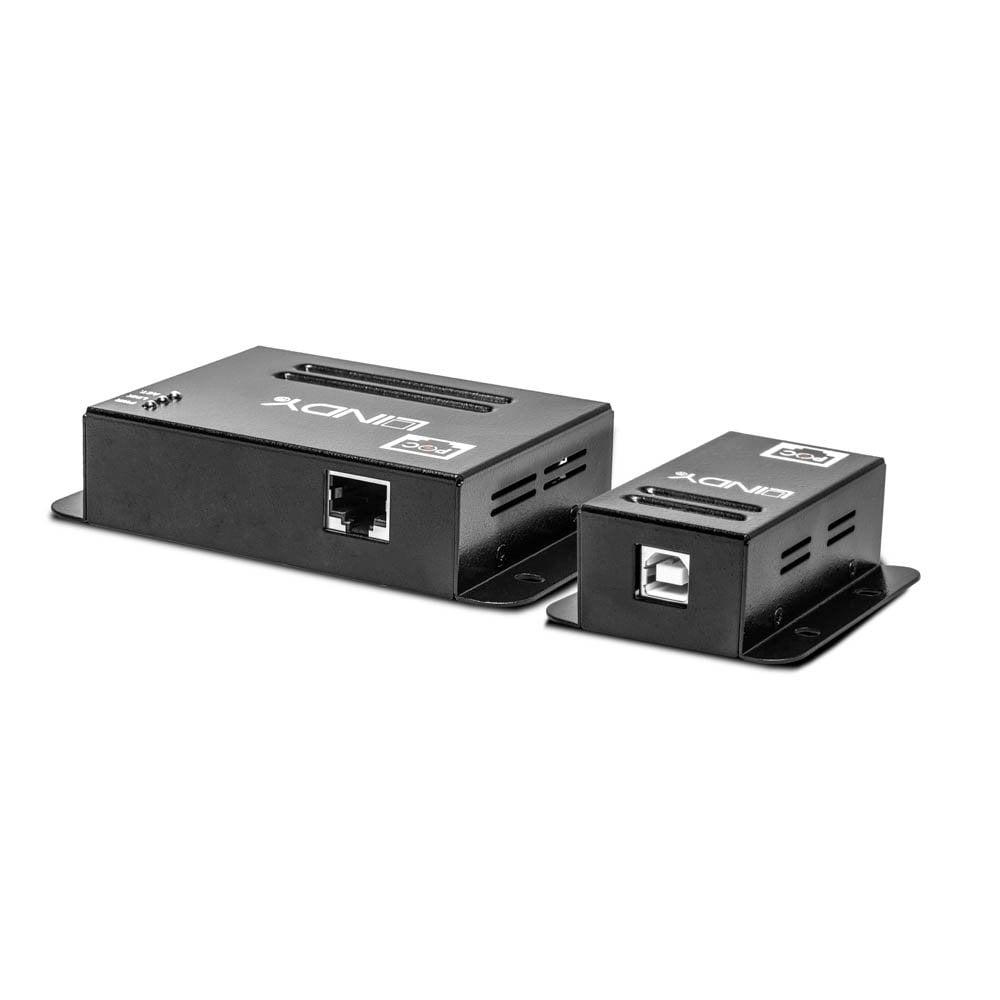

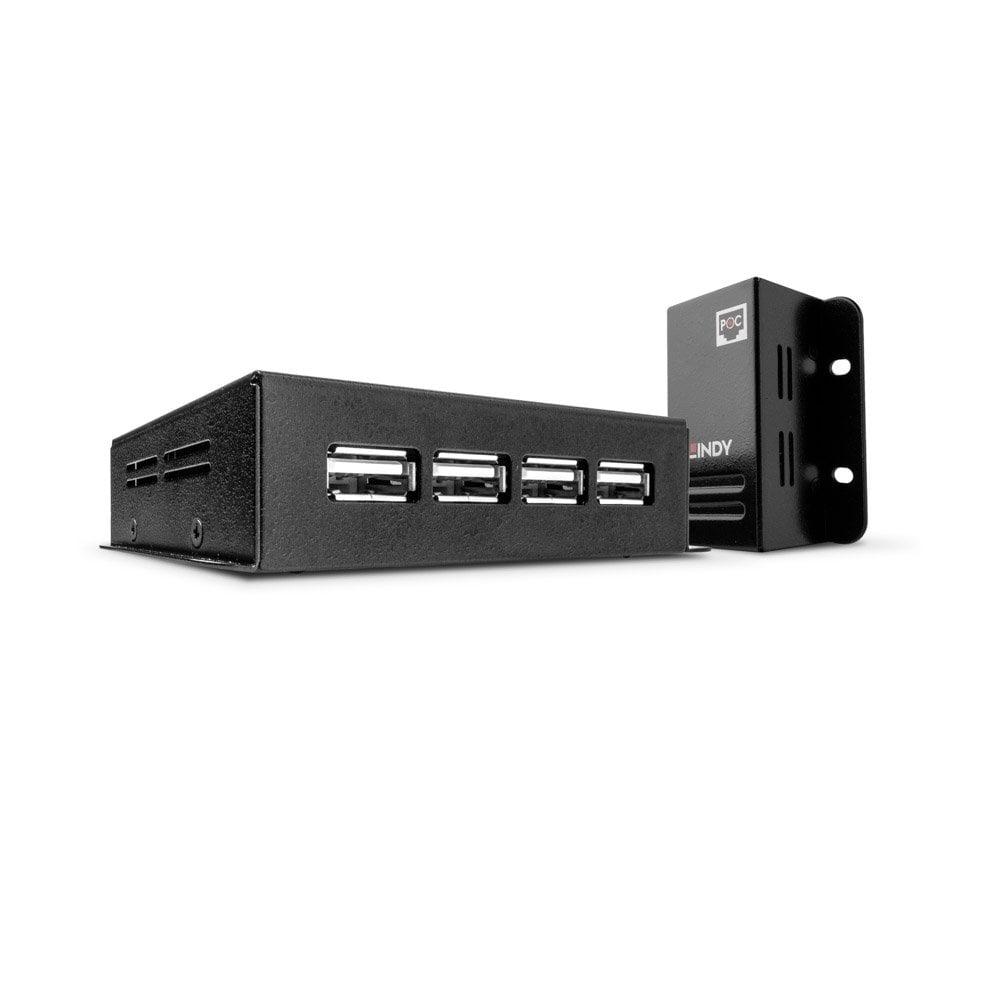

Lindy 50m 4 Port USB 2.0 Cat.5e Extender Technical
878,51 lei inclusiv TVA
Stoc epuizat
Lindy 50m 4 Port USB 2.0 Cat.5e Extender Technical details Specifications USB Standard: USB 2.0 Supported Bandwidth: 480Mbps Maximum Distance: 50m (164.04ft) Transmission Medium: Cat.5/5e/6 or higher network cable Chipset: NS1021 Special Features: Power over Cable Connectors Transmitter Input: USB Type B (Female) Transmitter Output: RJ45 (Female) Receiver Input: RJ45 (Female) Receiver Output: 4 x USB Type A (Female) Power: 3.5/1.35mm DC socket Physical Properties Dimensions WxDxH: 60x67x23mm (2.36×2.64×0.91in) (TX) 110x64x23mm (4.33×2.52×0.91in) (RX) Housing Material: Metal Net Weight: 0.415kg (0.91lb) Operating Temperature: -0° – 70°C (32°F – 158°F) Storage Temperature: -20°C – 80°C (-4°F – 176°F) Humidity: 0 – 90% RH (non-condensing) Power Requirements: 24VDC 0.5A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 215x155x50mm (8.46×6.1×1.97in) Gross Weight: 0.6kg (1.32lb) Warranty (Years): 2 Certificated: CE, FCC, RoHS & REACH Package Contents Transmitter unit Receiver unit 0.5m USB 2.0 A Male to B Male cable Multi-Country Power Supply (EU, UK, US & AUS) Lindy Manual Purchasing information No.: 42681 EAN: 4002888426817 https://www.lindy-international.com/50m-4-Port-USB-2-0-Cat-5e- Extender-.htm?websale8=ld0101.ld021102&pi=42681&ci=50
| Plug and Play | Yes |
|---|---|
| External power adapter | Yes |
| USB 2.0 ports quantity | 5 |
| Power over Ethernet (PoE) | Yes |
| Included power plug types | AU, EU, UK, US |
| Data transfer rate | 480 Mbit/s |
| Connector contacts plating | Gold |
| Power note | 3.5/1.35mm DC |
| Storage relative humidity (H-H) | 0 – 90% |
| Output voltage | 24 V |
| Contact material | Phosphor bronze |
| Connector material | Gold |
| Output current | 0.5 A |
| Cable types supported | Cat5, Cat5e, Cat6 |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Maximum transfer distance | 50 m |
| Distanta maxima | 50 m |
| Numar porturi RJ-45 | 2 |
| Numar porturi USB | 4 |
| Interfata HDMI | Nu |
| Rezolutie maxima | None |
| Supported bandwidth | 480MBPS |
| Chipset (transmitter) | NS1021 |
| Transmitter width | 6 cm |
| Transmitter depth | 6.7 cm |
| Transmitter height | 2.3 cm |
| Receiver width | 11 cm |
| Receiver depth | 6.4 cm |
| Receiver height | 2.3 cm |
| Package volume | 600 cm³ |
| Product colour | Black |
| DC-in jack | Yes |
| Operating relative humidity (H-H) | 0 – 90% |
| Harmonized System (HS) code | 85176990 |
| Ethernet LAN (RJ-45) ports | 2 |
| Storage temperature (T-T) | -20 – 80 °C |
| Manual | Yes |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 – 70 °C |
| Housing material | Metal |
| Package type | Box |
| Weight | 415 g |
| Package depth | 155 mm |
| Package width | 215 mm |
| Package height | 50 mm |
| Cables included | USB Type-A to USB Type-B |
| Certification | CE, UKCA, FCC, RoHS & REACH |
| Producator | LINDY |
| Garantie | 24 |
