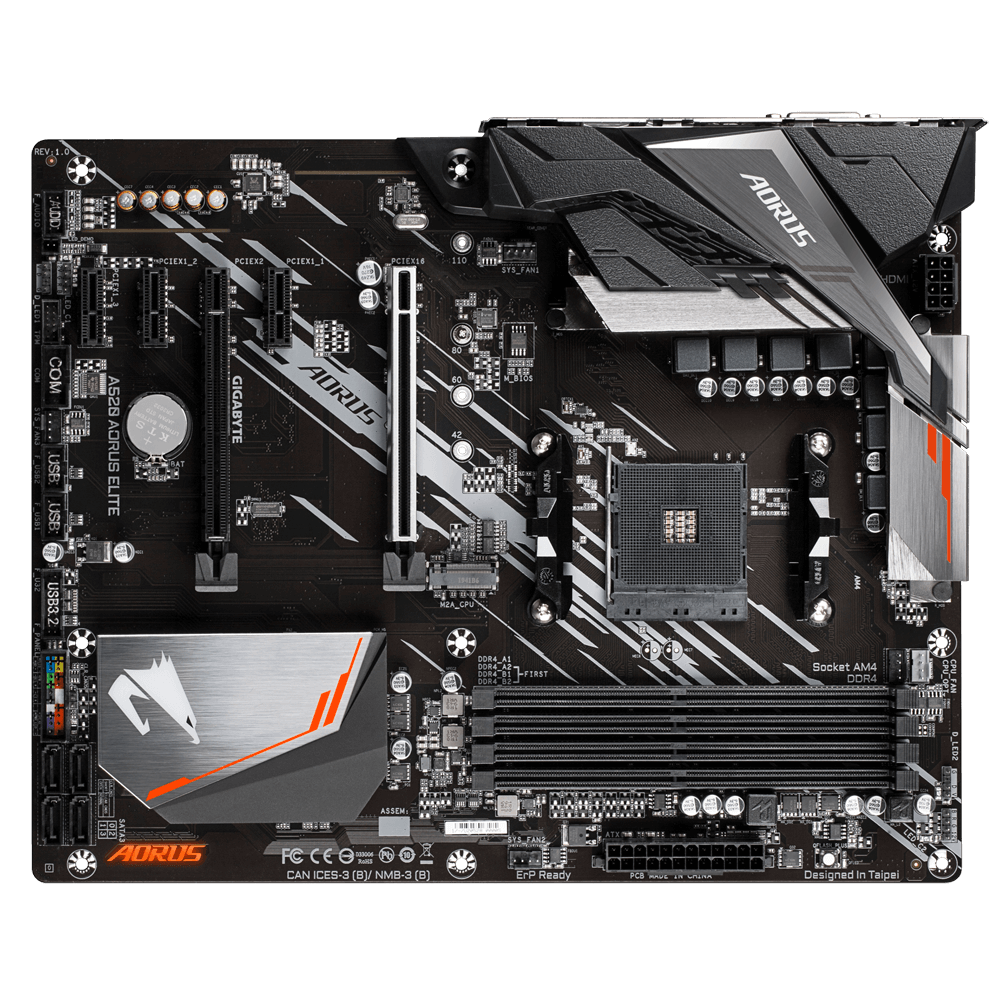

Placa de baza Gigabyte A520 AORUS ELITE, Socket AM4, DDR4,
462,63 lei inclusiv TVA
Stoc epuizat
Te poti baza pe chipset-ul AMD A520 care it ofera performanta plung-and-play si conectivitatea de care ai nevoie.Nucleul AORUS este inspirat de natura agresiva a soimului si priceperea de vanatoare. Soimul isi foloseste unghiile ascutite pentru a lovi rapid prada cu eficienta si precizie exceptionale, calitati care sunt exemplificate in detaliile fine ale designului AORUS.GIGABYTE UD utilizeaza un MOSFET digital PWM + Low RDS (on) MOSFETs pentru a sprijini procesoarele AMD Ryzen™ 3 gen, oferind o precizie incredibila in furnizarea puterii la componentele cele mai infometate si sensibile la energie de pe placa de baza, precum si la furnizarea performantei imbunatatite a sistemului si la scalabilitatea hardware finala.
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | DVI/HDMI |
| CPU încorporat | No |
| Component for | PC |
| Ethernet interface type | Gigabit Ethernet |
| Windows operating systems supported | Windows 10 x64 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Audio Chip | Realtek ALC1200 |
| Supported memory types | DDR4-SDRAM |
| Processor socket | Socket AM4 |
| Number of M.2 (M) slots | 1 |
| S/PDIF out port | Yes |
| HDCP | Yes |
| DVI-D ports quantity | 1 |
| Maximum resolution | 4096 x 2160 pixels |
| Model Chipset | A520 |
| Gaming | Da |
| Format | ATX |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Motherboard form factor | ATX |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| BIOS memory size | 128 Mbit |
| Serial port headers | 1 |
| RAID levels | 0, 1, 10 |
| Motherboard chipset | AMD A520 |
| Number of storage drives supported | 5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Supported processor sockets | Socket AM4 |
| Supported memory clock speed (max) | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4733 MHz |
| Power fan connector | Yes |
| Bundled software | Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| PCI Express x1 slots | 3 |
| Batteries included | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Height | 35 mm |
| Harmonized System (HS) code | 84733020 |
| Country of origin | China |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Headphone outputs | 5 |
| Package weight | 13.5 kg |
| Width | 30.5 mm |
| Depth | 24.4 mm |
| Producator | GIGABYTE |
| Garantie | 36 |
