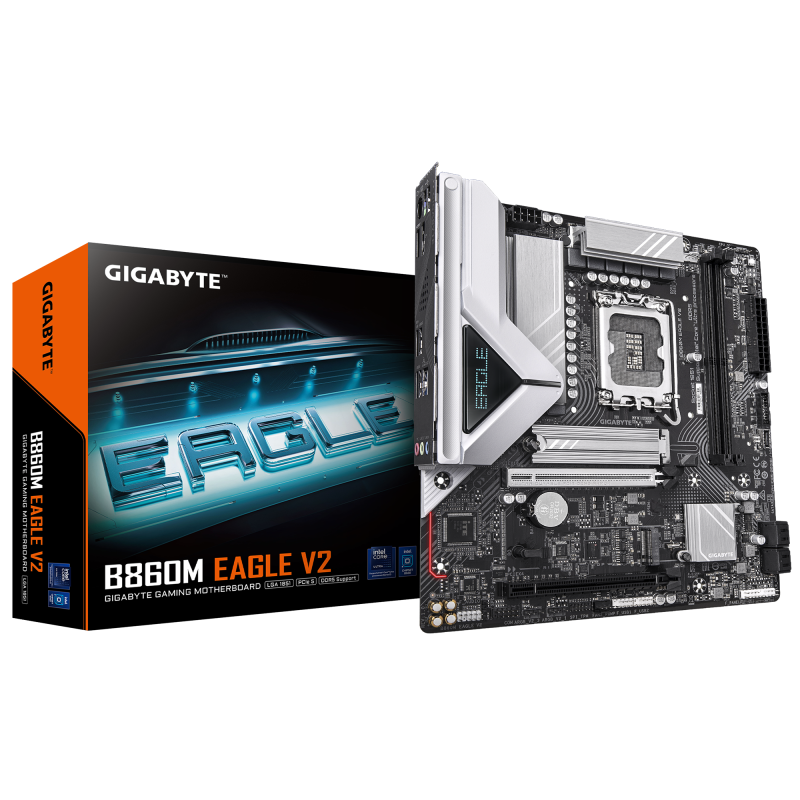

Placa de baza Gigabyte B860M EAGLE V2, Socket 1851, DDR5,
867,33 lei inclusiv TVA
0 în stoc
Placa de Baza GIGABYTE B860M EAGLE V2 LGA1851, 2x DDR5, 1x HDMI 1x DP, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 2x M.2, 4x SATA 6GB/s, mATX
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-FI | No |
| USB3 | 4-8 |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio output channels | 7.1 channels |
| USB 2.0 ports quantity | 3 |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Audio Chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of memory slots | 2 |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 2 |
| Cooling type | Passive |
| HDCP | Yes |
| Screws included | Yes |
| DisplayPort version | 2.1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Gaming | Nu |
| Bluetooth | Nu |
| HDMI | Da |
| Thunderbolt | Nu |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Processor socket | LGA 1851 (Socket V1) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| RAID levels | 0, 1, 5, 10 |
| Front panel connector | Yes |
| Number of CPU fan connectors | 2 |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| Number of storage drives supported | 6 |
| S/PDIF out connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| Number of EPS power connectors (8-pin) | 1 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of RGB LED pin headers | 3 |
| PCI-Ex1 | 0 |
| MB-Format | micro-ATX |
| RAM-Slots | 2 |
| Numar sloturi memorie | 2 |
| Memorie maxima | N/A |
| Canale audio | N/A |
| RJ-45 LAN | N/A |
| Chipset audio integrat | Realtek |
| Soclu Procesor | Socket 1851 |
| Tip Memorie | DDR5 |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Wireless | N/A |
| USB Type-C | N/A |
| Sloturi M.2 | 2 |
| Model Chipset | B860 |
| MB-Socket | LGA1851 |
| PCI-Ex16 | 2 |
| Supported memory clock speed (max) | 9066,8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,5600 MHz |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Batteries included | Yes |
| Height | 35 mm |
| Width | 244 mm |
| Package height | 54 mm |
| Package weight | 1.2 kg |
| Power source type | ATX |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Product colour | Dark brown |
| Products per shipping (inner) case | 1 pc(s) |
| Package width | 265 mm |
| Package depth | 265 mm |
| Depth | 225 mm |
| Weight | 1.01 kg |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Format | Micro-ATX |
| Producator | GIGABYTE |
| Garantie | 36 |
