Lifecycle

Obsolete Date 30-11-2026

Specifications

Processor speed 2.80 GHz
Included drives None ship standard, 8 SFF supported
Processor name Intel® Xeon® Gold 6526Y (16 core, 2.80 GHz, 37.5 MB L3, 195W)
Included memory 128 GB (4×32 GB, 5600 MT/s)
System fan features 7x High Performance Fans
Memory type HPE DDR5 Smart Memory
Expansion slots Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs.
Network controller Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE
Form factor 1U Rack
Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit: https://www.hpe.com/support.
Security UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits.
Power supply type 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Storage controller HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
Optical drive type None included, optional HPE 9.5mm SATA DVD-RW Optical Drive or HPE Mobile USB DVD-RW Drive.
Processor number 1 processor included
Processor core available 16 core
Processor cache 37.5 MB L3
Accelerators Supports up to two double-wide or four single-wide PCIe Accelerators (GPU), depending on model. See QuickSpecs for details.
Infrastructure management Included – HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional – HPE iLO Advanced, and HPE OneView Advanced.

Overview

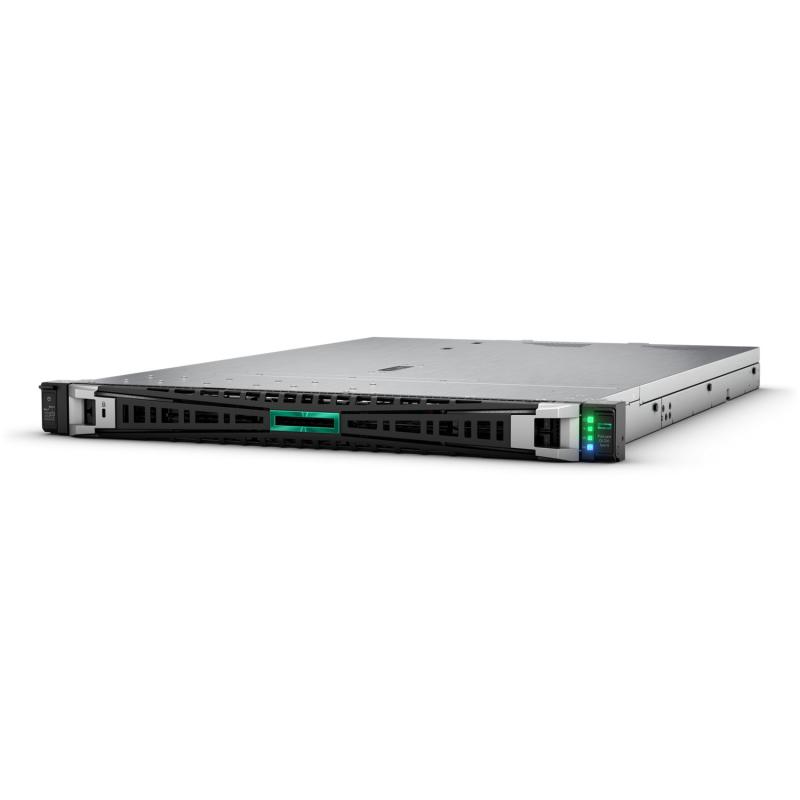

Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

What’s new

Powered by the 4th and 5th Gen Intel® Xeon® Scalable Processors with next-generation 5nm technology that supports up to 60 cores at 270W and 16 DIMMs of DDR5 memory up to 5600 MT/s.
16 DIMMs per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2×16 PCIe Gen5 and 1 OCP 3.0 slots.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable or internal, high-availability RAID1 NVMe M.2 boot options.
Support for up to four single-wide or two double-wide GPUs in the front cage with the GPU CTO server.

Features

The HPE ProLiant DL320 Gen11 server is an excellent choice for virtualized workloads such as software-defined compute, CDN, and VDI, and secure edge apps that require balancing processor, memory, and network bandwidth.

Harness major computer performance. The HPE ProLiant DL320 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors with modern 5nm technology that support up to 60 cores and 270W TDP.

Intuitive Cloud Operating Experience: Simple, Self-service, and Automated

Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2×16 PCIe Gen5 and 1 OCP slots to improve I/O throughput and reduce latency.

Utilize 16 DIMM channels per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

The HPE ProLiant DL320 Gen11 server is supported by GreenLake Flex Solutions to simplify IT. With 24×7 monitoring and management, our experts do the heavy lifting to manage your environment with services built into consumption-based solutions.

Hewlett Packard Enterprise provides customers choice in how they acquire and consume IT. Beyond traditional financing and leasing, HPE offers options that free trapped capital, accelerate infrastructure updates and provide for on-premises pay-per-use consumption with GreenLake Flex Solutions.

Rapidly deploy a broad portfolio of cloud services such as, containers, compute, virtual machines (VMs), accelerated storage, data protection, and more. Workload-optimized, preconfigured solutions can be quickly on-boarded, accelerating your agility

Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

Delivered As-a-Service

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, and data connections, providing the fastest path to bring a server back online and into normal operations.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Trusted Security by Design: Uncompromising, Fundamental, and Protected

The HPE ProLiant DL320 Gen11 server is tied into the silicon root of trust and the 4th and 5th Gen Intel® Xeon® Scalable Processor, a dedicated security processor embedded in the Intel Xeon system on a chip (SoC), to manage secure boot, memory encryption, and secure virtualization.

HPE ProLiant Gen11 servers use the silicon root of trust to anchor the firmware of an HPE ASIC, creating an immutable fingerprint for the Intel® Xeon® Processor that must be matched exactly before the server will boot. This ensures malicious code is contained and healthy servers are protected.

Optimized Performance for your Workloads: Accelerated, Open, and Efficient

HPE ProLiant DL320 Gen11 servers are engineered for your hybrid world. The HPE ProLiant DL320 Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a self-service console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management reducing tasks and shortening maintenance windows.

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using GreenLake Flex Solutions as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

HPE ProLiant Gen11 servers continuously protect healthy servers by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, and secure servers at the edge with IDevID certificates installed by default.

Media

HPE ProLiant Gen11 servers with 4th Gen Intel® Xeon® Scalable Processors | Chalk Talk

In this Chalk Talk, learn about the new portfolio of HPE ProLiant Gen11 servers with 4th Gen Intel® Xeon® Scalable Processors.

HPE ProLiant Gen11 – Intel family – brief animated tour video for social media

New HPE ProLiant Gen11 servers are engineered for the hybrid world to deliver an intuitive cloud operating experience, trusted security by design, and optimized performance.

Deploy AI at the edge with HPE ProLiant DL320 Gen11 Server

www.hpe.com/hpe-proliant-dl320-gen11 In this video, learn about deploying AI at the edge with HPE ProLiant DL320 Gen11 Server and Vision AI. The workflow improves operational efficiency, enables the ability to react instantly to concerns.

HPE ProLiant DL320 Gen11 virtual tour animated video

The new HPE ProLiant DL320 Gen11 server is a low-cost 1U 1P solution that delivers exceptional compute performance, upgraded high-speed data transfer rates, and increased memory and memory bandwidth.

HPE ProLiant Gen11 servers with Intel Xeon – animated video

New HPE ProLiant Gen11 servers are engineered for the hybrid world to deliver an intuitive cloud operating experience, trusted security by design, and optimized performance – all while supporting a wide range of workloads that enable businesses to modernize and accelerate new innovations.

Compatible products

Documents

HPE ProLiant DL320/DX320 Gen11 #EUDoC TPS-I033
