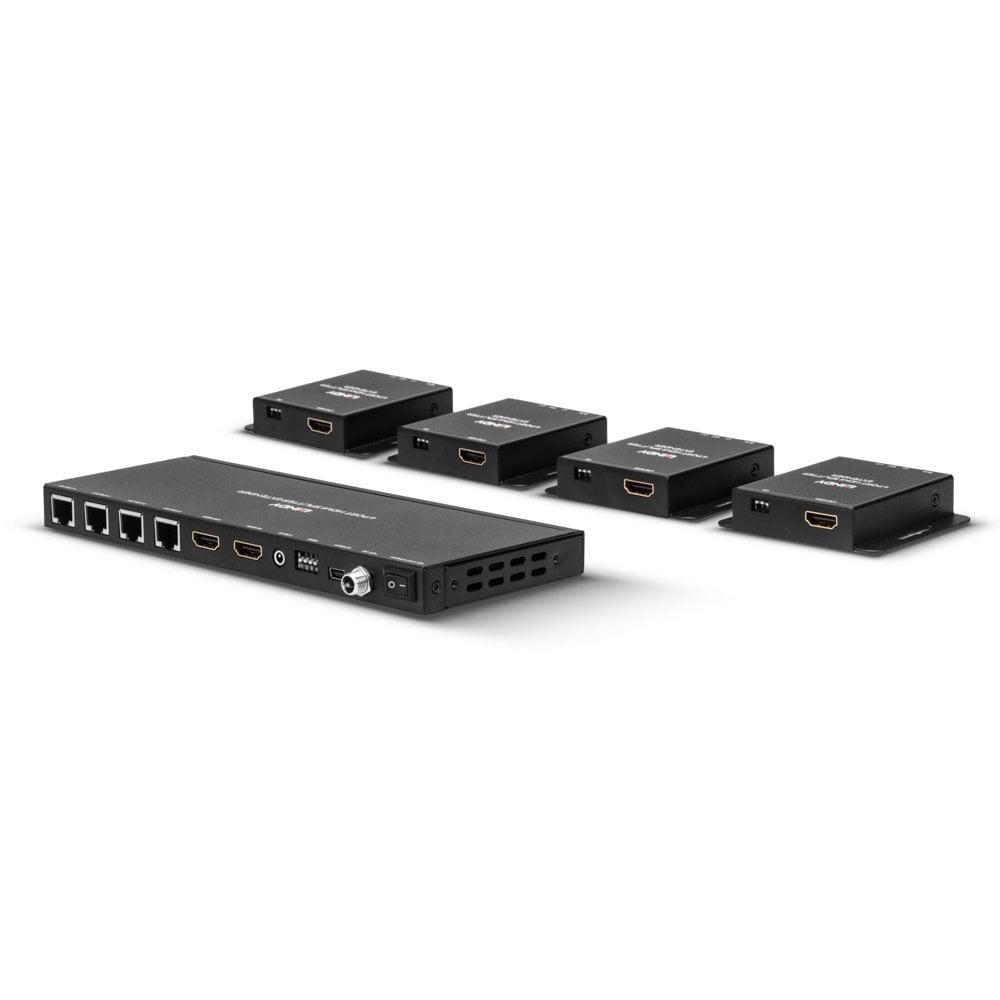

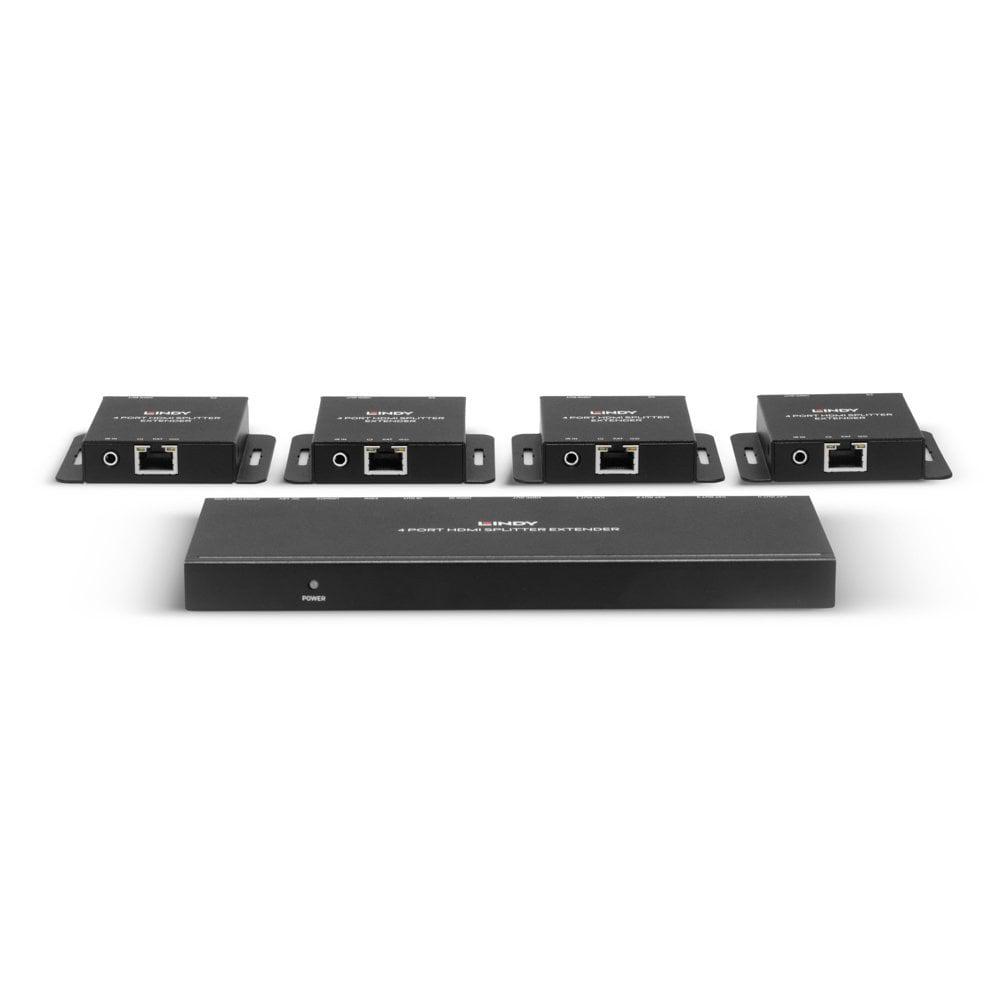

Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender
Prețul inițial a fost: 1.625,86 lei.1.339,12 leiPrețul curent este: 1.339,12 lei. inclusiv TVA
1 în stoc
Lindy 50m Cat.6 4 Port HDMI & IR Splitter Extender with Loop Out Description An advanced Splitter Extender that extends and distributes HDMI & IR signals to 4 displays at distances of up to 50m Supports resolutions up to Full HD 1920×1080 @60Hz 4:4:4 8bit, including 3D Features a loop-through HDMI output on the transmitter for local monitoring/cascading Supports power over Cable (PoC), only a single power supply is required for operation Technical details Specifications AV Interface: HDMI Interface Standard: HDMI 1.3 Supported Bandwidth: 4.95 Gbps Maximum Distance: 50m (164.04ft) – 1920×1080@60Hz 4:4:4 8bit Cat.6 Maximum Resolution: 1920×1080@60Hz 4:4:4 8bit HDCP Support: HDCP 1.2 EDID Pass Through: Preset, Cloning Function Supported Audio: Up to 7.1 (Pass-through) IR Support: 20-60 kHz CEC Support: – Transmission Medium: 1 x Cat.6 (per receiver) Special Features: PoC (Power over Cable Cable) Connectors Transmitter Input: HDMI (Female) Transmitter Output: 4 x RJ45 (Female), HDMI (Female), IR (Female) Receiver Input: RJ45 (Female), IR (Female) Receiver Ouput: HDMI (Female) Power: 5.5/2.1mm DC Socket Physical Properties Dimensions WxHxD: Transmitter: 210x83x17mm (8,27×3,27×0,67in) Receivers: 79x68x17mm (3,11×2,68×0,67in) (per unit) Housing Material: Metal Nett Weight: Transmitter: 0.443kg (0.98lb) Receiver: 0.131kg (0.29lb) per unit Operating Temperature: 0°C – 40°C (32°F – 104°F) Storage Temperature: -20°C – 60°C (-4°F – 140°F) Humidity: 20 – 90% RH (non-condensing) Power Requirements: 12VDC 2.5A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 310x162x74mm (12.21×6.38×2.91in) Gross Weight: 1.516kg (3.34lb) Warranty (Years): 2 Certificated: CE, FCC, REACH and RoHS Package Contents Splitter transmitter unit 4 x Receiver unit IR emitter cable 4 x IR receiver cable Multi-Country Power Supply (EU, UK, US & AUS) Lindy manual https://www.lindy-international.com/50m-Cat-6-4-Port-HDMI-IR-Splitter- Extender-with-Loop-Out.htm?websale8=ld0101.ld021102&pi=38155 &ci=20
| Connectivity technology | Wired |
|---|---|
| AC adapter output voltage | 12 V |
| Number of displays supported | 4 |
| Cable types supported | Cat6 |
| RJ-45 ports quantity (receiver) | 1 |
| Transmitter video port type | HDMI |
| Receiver local video port type | HDMI |
| AC adapter output current | 2.5 A |
| Rezolutie maxima | 1920 x 1080 pixels |
| Refresh rate | 60 Hz |
| Porturi Video: | 4 |
| Maximum transfer distance | 50 m |
| Maximum digital resolution | 1920 x 1080 pixels |
| Transmitter local video port | HDMI |
| RJ-45 ports quantity (transmitter) | 4 |
| Transmitter width | 11.8 cm |
| Transmitter depth | 25 cm |
| Transmitter height | 3.2 cm |
| Transmitter weight | 443 g |
| Receiver width | 4.9 cm |
| Receiver depth | 8.1 cm |
| Receiver height | 2.5 cm |
| Receiver weight | 131 g |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 °C |
| AC adapter included | Yes |
| Harmonized System (HS) code | 84733080 |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 20 – 90% |
| Manual | Yes |
| LED indicators | Yes |
| Certification | CE, FCC, RoHS, REACH |
| Cables included | IR |
| Producator | LINDY |
| Garantie | 24 |
