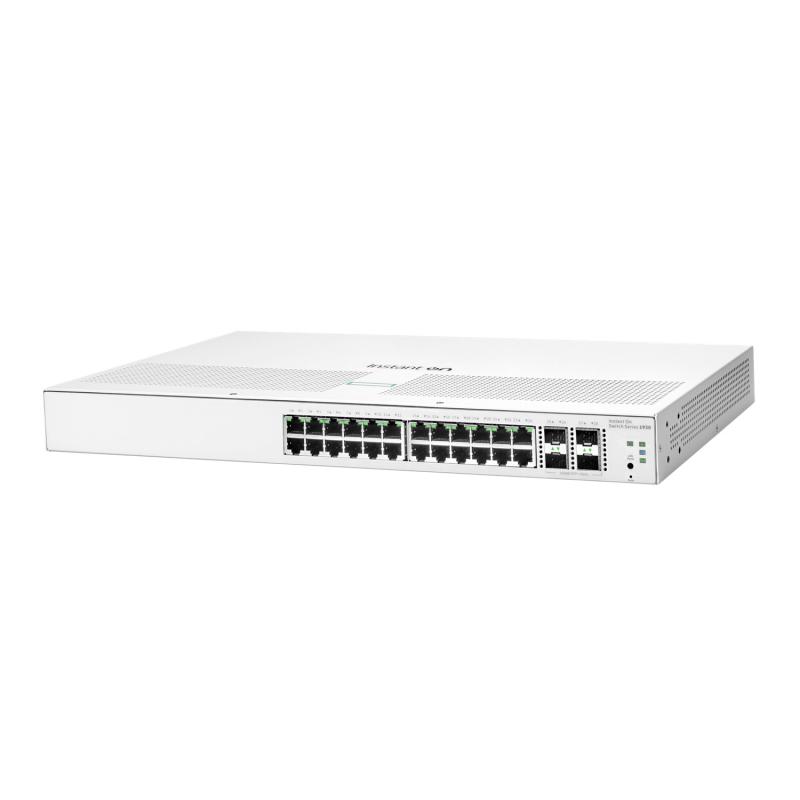

HPE Networking Instant On Switch 24p Gigabit 4p SFP+ 1930

Lifecycle

<ul>
                <li><b>Obsolete Date</b> 31-12-2099</a></li>
                <li><b>End of support date</b> 31-12-2104</a></li>
        </ul>

<h4>Specifications</h4>
<ul>
                <li><b>Input voltage</b> 100 - 127 / 200 - 240 VAC</li>
                <li><b>Power consumption</b> 22.6W maximum, 9.3W idle</li>
                <li><b>Weight</b> 5.32 lb</li>
                <li><b>Management features</b> Instant On Portal, Web browser, SNMP Manager</li>
                <li><b>Weight</b> 2.41 kg</li>
                <li><b>Product dimensions (imperial)</b> 1.73 x 17.42 x 8.72 in</li>
                <li><b>Product dimensions (metric)</b> 4.39 x 44.25 x 22.15 cm</li>
                <li><b>Memory and processor</b> ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer</li>
                <li><b>Warranty</b> Limited lifetime warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty duration. Community support is available for the life of the product.</li>
                <li><b>Switching capacity</b> 128 Gbps</li>
                <li><b>Throughput</b> 95.23 Mpps, maximum</li>
                <li><b>Ports</b> 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASETX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10 GbE ports</li>
                <li><b>Operating temperature</b> 32°F to 104°F (0°C to 40°C)</li>
        </ul>

<h4>Quickspecs</h4>
<ul>
                <li><a href="##QUICKSPECS##" target="_blank">QuickSpecs</a></li>
                <li><a href="##QUICKSPECS##" target="_blank">QuickSpecs</a></li>
                <li><a href="https://www.hpe.com/psnow/doc/a50000620enw.html?jumpid=in_pdp-psnow-qs" target="_blank">QuickSpecs (HTML)</a></li>
                <li><a href="https://www.hpe.com/psnow/doc/a50000620enw.pdf?jumpid=in_pdp-psnow-qs" target="_blank">QuickSpecs (PDF)</a></li>
        </ul>

<h4>Overview</h4>
The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.

<h4>What's new</h4>
<ul>
                <li>1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.</li>
                <li>HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.</li>
                <li>Option to manage your switches through local web GUI.</li>
                <li>Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.</li>
                <li>Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.</li>
        </ul>

<h4>Features</h4>
                    The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8 G-, 24 G-, and 48 G-ports with and without class 4 PoE (i.e. PoE+).
                            The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
                            The HPE Networking Instant On Switch 1930 series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
                            <b>Deliver High Perfomance</b>
                            Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.
                            Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
                            Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
                            The HPE Networking Instant On Switch 1930 series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.
                            <b>Simplify Network Deployment and Management for Small Organizations</b>
                            The HPE Networking Instant On Switch 1930 series features easy-to-use, out-of-the-box, plug-and-play deployment.
                            The 24- and 48-port models include 1 G/10 G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
                            8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
                            The HPE Networking Instant On Switch 1930 series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
                            <b>Keep Your Business Protected with Integrated Security Features</b>
