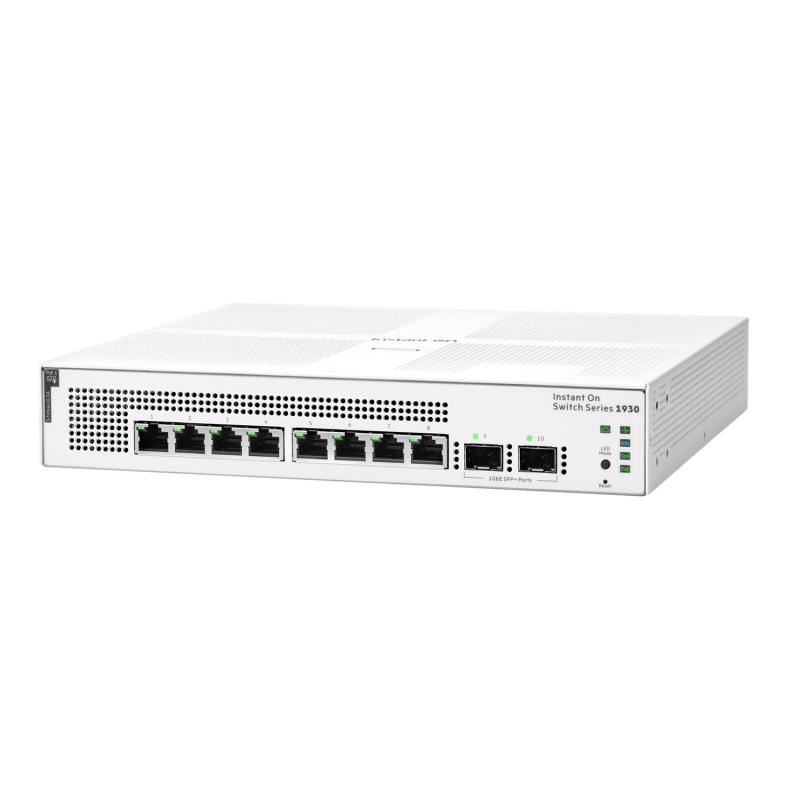

HPE Networking Instant On Switch 8p Gigabit CL4 PoE 2p

Lifecycle

• Obsolete Date 31-12-2099
• End of support date 31-12-2104

Specifications

• Operating temperature 32°F to 104°F (0°C to 40°C)
• Throughput 14.88 Mpps, maximum
• Ports 8 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASETX, IEEE 802.3ab Type 1000 BASE-T) Duplex: 10 BASE-T/100 BASETX: half or full; 1000 BASE-T: full only 2 SFP 1 GbE ports
• Switching capacity 20 Gbps
• Management features Instant On Portal, Web browser, SNMP Manager
• Weight 1.16 kg
• Product dimensions (imperial) 1.73 x 10 x 10 in
• Product dimensions (metric) 4.39 x 25.4 x 25.4 cm
• Memory and processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
• Power consumption 150.2W maximum, 11.7W idle
• Weight 7.21 lb
• Warranty Limited lifetime warranty with 24X7 phone support for the first 90 days and chat support for the entire warranty duration. Community support is available for the life of the product.
• PoE capability 124 W Class 4
• Input voltage 100 – 127 / 200 – 240 VAC

Quickspecs

• QuickSpecs
• QuickSpecs
• QuickSpecs (PDF)
• QuickSpecs (HTML)

Overview

The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.

What’s new

• Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity.
• Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility.
• 1 G/10 G SFP+ ports on 24-and 48-port models for fiber connectivity.
• HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Option to manage your switches through local web GUI.

Features

Simplify Network Deployment and Management for Small Organizations

The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8 G-, 24 G-, and 48 G-ports with and without class 4 PoE (i.e. PoE+).

The HPE Networking Instant On Switch 1930 series features easy-to-use, out-of-the-box, plug-and-play deployment.

8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.

The 24- and 48-port models include 1 G/10 G SFP+ ports for reliable fiber connectivity and other connections across longer distances.

The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.

The HPE Networking Instant On Switch 1930 series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

The HPE Networking Instant On Switch 1930 series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.

Deliver High Perfomance

Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection.

Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.

The HPE Networking Instant On Switch 1930 series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.

Keep Your Business Protected with Integrated Security Features

Compatible products

• ARUBA ION 10G SFP+ TO SFP+ 3M DAC CABLE
• HPE Aruba Networking 1G SFP LC LX 10km SMF Transceiver
• HPE Networking Instant On 10G SFP+ to SFP+ 1m Direct Attach Copper Cable
• HPE Aruba Networking 10G SFP+ LC SR 300m OM3 MMF Transceiver
• HPE Aruba Networking 1G SFP LC SX 500m OM2 MMF Transceiver
• Aruba IOn 10G SFP+ LC SR 300m MMF XCVR
• Aruba IOn 1G SFP LC SX 500m MMF XCVR
• HPE Aruba Networking 10G SFP+ LC LR 10km SMF Transceiver
• HPE Aruba Networking Foundational Care 3Y NBD Exch ION 1930 8G PoE Switch SVC
• Aruba IOn 1G SFP RJ45 T 100m Cat5e XCVR

Documents

• HPE Networking Instant On Switch 1930 QuickSpecs
• HPE Networking Instant On Switch Series 1930 Data Sheet
