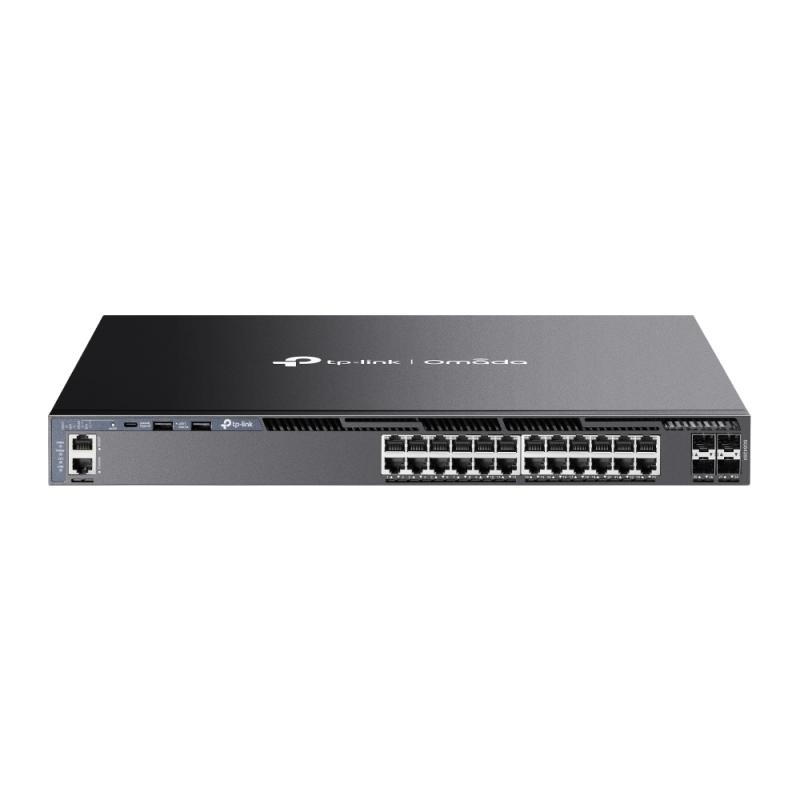

Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE
13.810,26 lei inclusiv TVA
Stoc epuizat
Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10GE SFP+ Slots PORT: 24× Gigabit RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Type C USB Console Port, Management Port, 2× USB2.0 Ports SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada SDN Controller, Stacking, RIP, OSPF, VRRP, ECMP, PIM-DM, Static Routing, DHCP Server, DHCP Relay, ERPS, RSPAN, QinQ, OAM, sFlow, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP, QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6, Dual Redundant Power Supplies
| Layer | Layer-2 |
|---|---|
| Stackable | Yes |
| Rackable | Yes |
| LAN-Port-Type | Gigabit |
| Redundant-PSU | Yes |
| Storage relative humidity (H-H) | 5 – 90% |
| Jumbo frames support | Yes |
| Power supply included | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 2.0 ports quantity | 2 |
| Rack mounting | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Static route | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Switch type | Managed |
| Port mirroring | Yes |
| Form factor | 1U |
| Access Control List (ACL) | Yes |
| Power over Ethernet (PoE) | No |
| Flow control support | Yes |
| Rate limiting | Yes |
| IGMP snooping | Yes |
| Configuring Location Settings (CLI) | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| 10G support | No |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Multicast support | Yes |
| Jumbo frames | 9000 |
| Switch layer | L3 |
| IP routing | Yes |
| Number of VLANs | 4000 |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Authentication type | RADIUS |
| ARP inspection | Yes |
| MAC address table | 32000 entries |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Number of fans | 4 fan(s) |
| Console port | RJ-45/USB Type-C |
| Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
| Packet buffer memory | 3 MB |
| DHCP features | DHCP relay, DHCP snooping, DHCPv6 snooping |
| IGMP entries | 2048 |
| Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
| Porturi RJ-45: | 24-28 |
| Viteza transfer | Gigabit |
| Montare in rack | Da |
| SFP module slots quantity | 4 |
| LAN Ports | 24 |
| Management | Managed |
| PoE | No |
| Porturi SFP | 4× 10G SFP+ Slots |
| Heat dissipation | 96.91 BTU/h |
| LED indicators | Yes |
| Power source | AC |
| Depth | 380 mm |
| AC input frequency | 50/60 Hz |
| Cables included | AC, LAN (RJ-45) |
| Cloud-managed | Yes |
| Power consumption (max) | 28.4 W |
| Operating temperature (T-T) | -5 – 40 °C |
| Producator | TP-LINK |
| Garantie | 24 |
