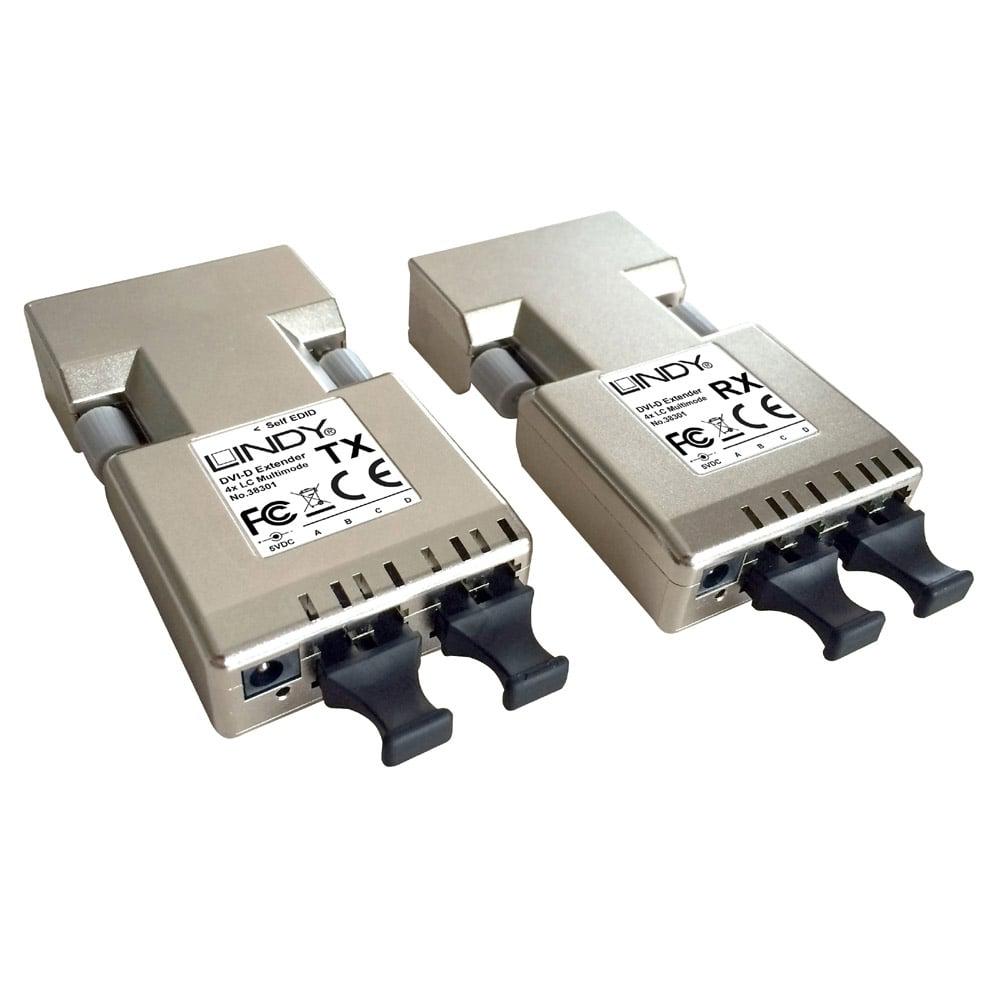

Lindy 500m Fibre Optic DVI-D Single Link Extender Description

Lindy 500m Fibre Optic DVI-D Single Link Extender Description Extends DVI-D signals at distances of up to 500m using dual fibre optic cables (not included) Compatible with DVI-D 2.0 specifications including HDTV and HD-Ready displays Supports HDTV resolutions up to 1920 x 1200 @ 60Hz / 1080p @ 60 Hz 6Gbps Total Bandwidth over Dual Duplex or 4x LC Simplex Fibre Optic Cables Technical details Specifications AV Interface: DVI-D Interface Standard: DVI-D 2.0 (Single Link) Supported Bandwidth: 4.95 Gbps Maximum Distance: 500m (1640.4ft) Maximum Resolution: 1920×1200@60Hz HDCP Support: – EDID Pass Through: – Supported Audio: – Separate Audio Ports: – IR Support: – CEC Support: – Serial Interface: – Transmission Protocol: – Transmission Medium: 2 x LC Duplex (50/125µm) Laser Class (only for Fibre): 1 Wavelength (only for Fibre): 850nm Chipset: – Special Features: Self-EDID learning Connectors Transmitter Input: DVI-D (Male) Transmitter Output: 2 x Duplex LC (Female) Receiver Input: 2 x Duplex LC (Female) Receiver Ouput: DVI-D (Male) Bidirectonal Ports: – Power: 3.5/1.35mm DC socket Physical Properties Dimensions WxDxH: 40x70x15mm (1.57×2.76×0.59in) per unit Housing Material: Metal Net Weight: 0.1kg (0.22lb) per unit Operating Temperature: 0°C – 70°C (32°F – 158°F) Storage Temperature: -20°C – 85°C (-4°F – 185°F) Humidity: 10 – 75% RH (non-condensing) Power Requirements: 5VDC
