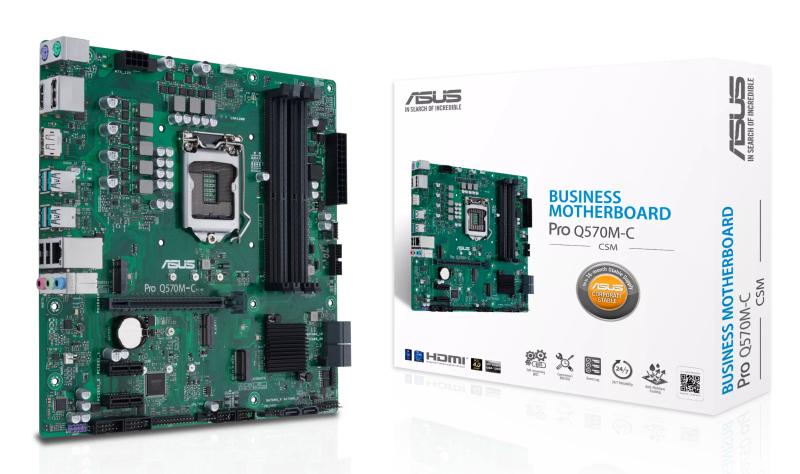

Placa de baza ASUS PRO Q570M-C/CSM, Socket 1200, DDR4, Micro-ATX
629,39 lei inclusiv TVA
Stoc epuizat
ASUS PRO Q570M-C/CSM. Processor manufacturer: Intel, Processor socket: LGA 1200 (Socket H5), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Maximum resolution: 4096 x 2304 pixels. HDMI version: 1.4/2.0
| Wi-FI | No |
|---|---|
| Component for | PC |
| Wake-on-LAN ready | Yes |
| DisplayPort version | 1.4 |
| Ethernet interface type | Gigabit Ethernet |
| Windows operating systems supported | Windows 10 x64 |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Maximum internal memory | 128 GB |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Audio output channels | 7.1 channels |
| DisplayPorts quantity | 2 |
| PCI Express x16 slots | 1 |
| Audio Chip | Realtek ALC897 |
| Supported memory types | DDR4-SDRAM |
| Number of M.2 (M) slots | 2 |
| LAN controller | Intel® I219-V |
| HDMI version | 1.4/2.0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Gaming | Nu |
| Soclu Procesor | Socket 1200 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Motherboard form factor | micro ATX |
| Clear CMOS jumper | Yes |
| Motherboard chipset family | Intel |
| Maximum number of SMP processors | 1 |
| Maximum resolution | 4096 x 2304 pixels |
| ECC сompatibility | Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| Chassis intrusion connector | Yes |
| BIOS memory size | 192 Mbit |
| Processor socket | LGA 1200 (Socket H5) |
| Supported memory clock speed (max) | 2133,2400,2666,2800,2933,3200 MHz |
| Audio connector | Yes |
| PS/2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
| Number of COM connectors | 2 |
| USB Type-C | N/A |
| Model Chipset | Q570 |
| Motherboard chipset | Intel Q570 |
| Ethernet LAN (RJ-45) ports | 1 |
| Harmonized System (HS) code | 84733020 |
| Cables included | SATA |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 51 mm |
| Weight | 634 g |
| Format | Micro-ATX |
| Producator | ASUS |
| Garantie | 24 |
