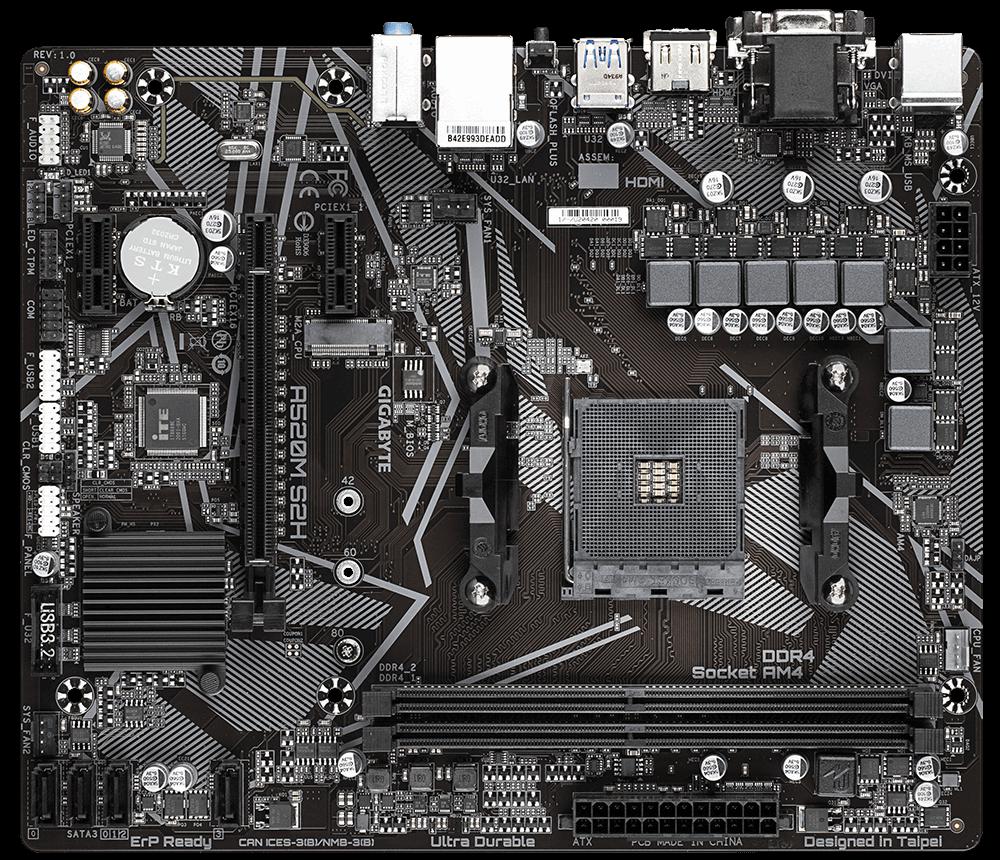

Placa de baza Gigabyte A520M S2H, Socket AM4, DDR4, Micro-ATX
Prețul inițial a fost: 356,89 lei.287,75 leiPrețul curent este: 287,75 lei. inclusiv TVA
21 în stoc
Te poti baza pe chipset-ul AMD A520 care it ofera performanta plung-and-play si conectivitatea de care ai nevoie.GIGABYTE UD utilizeaza un MOSFET digital PWM + Low RDS (on) MOSFETs pentru a sprijini procesoarele AMD Ryzen™ 3 gen, oferind o precizie incredibila in furnizarea puterii la componentele cele mai infometate si sensibile la energie de pe placa de baza, precum si la furnizarea performantei imbunatatite a sistemului si la scalabilitatea hardware finala. In plus, placile de baza GIGABYTE folosesc condensatoare audio de inalta calitate. Aceste condensatoare de inalta calitate ajuta la furnizarea audio de inalta rezolutie si fidelitate inalta pentru a oferi cele mai realiste efecte sonore pentru gameri.
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | VGA/DVI/HDMI |
| CPU încorporat | No |
| RAID support | Yes |
| Component for | PC |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Processor socket | Socket AM4 |
| VGA (D-Sub) ports quantity | 1 |
| HDCP | Yes |
| DVI-D ports quantity | 1 |
| Model Chipset | A520 |
| Gaming | Nu |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 2 |
| Memorie maxima | 64 GB |
| Tip slot interfata grafica | N/A |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | N/A |
| Bluetooth | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | N/A |
| RJ-45 LAN | 1 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Memory slots type | DIMM |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| ECC сompatibility | ECC & Non-ECC |
| RGB LED pin header | Yes |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| Maximum number of SMP processors | 1 |
| Clear CMOS button | Yes |
| BIOS memory size | 128 Mbit |
| RAID levels | 0, 1, 10 |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 64 GB |
| Power fan connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA |
| Supported memory clock speed (max) | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000 MHz |
| Height | 35 mm |
| Harmonized System (HS) code | 84733020 |
| Width | 244 mm |
| Country of origin | China |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 740 g |
| Depth | 20.5 mm |
| Format | Micro-ATX |
| Producator | GIGABYTE |
| Garantie | 36 |
