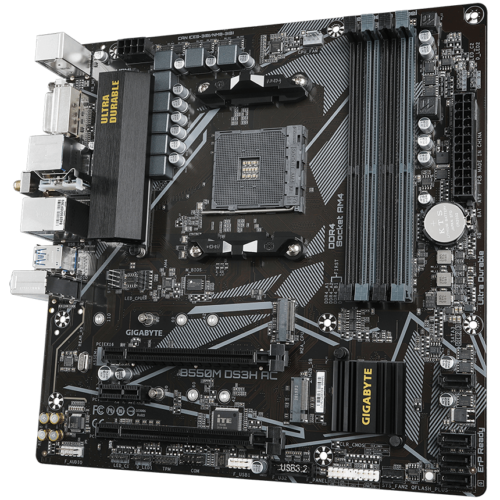

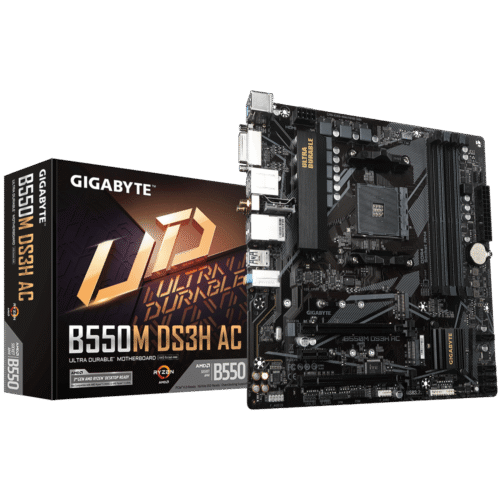

Placa de baza Gigabyte B550M DS3H AC, Socket AM4, DDR4,
664,98 lei inclusiv TVA
Stoc epuizat
Placa de baza Gigabyte B550M DS3H AC AM4 DDR4, 4x sloturi RAM, max. 128GB, frecventa maxima suportata 4733MHz, 1x DVI-D, 1x HDMI, 2x PCIe x16, 1x PCIe x1, 2x M.2, 4x conectori SATA 6GB/s, 1x LAN 1Gbps, WIFI, Bluetooth 4.2, microATX
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | DVI/HDMI |
| Wi-FI | Yes |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A |
| Ethernet interface type | Gigabit Ethernet |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Maximum internal memory | 128 GB |
| WLAN controller model | Realtek RTL8821CE |
| Processor manufacturer | AMD |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Audio output channels | 7.1 channels |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Line-in | Yes |
| PCI Express x16 slots | 1 |
| Audio Chip | Realtek ALC897 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| On-board graphics card | No |
| Supported storage drive types | HDD & SSD |
| Supported memory types | DDR4-SDRAM |
| LAN controller | Realtek RTL8111H |
| Number of M.2 (M) slots | 2 |
| Processor socket | Socket AM4 |
| Cooling type | Passive |
| Motherboard chipset | AMD B550 |
| PCI Express x1 slots | 1 |
| HDCP | Yes |
| Screws included | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Model Chipset | B550 |
| Gaming | Nu |
| Soclu Procesor | Socket AM4 |
| Tip Memorie | DDR4 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 128 GB |
| Tip slot interfata grafica | PCIe 3.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 2 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| mSATA ports quantity | 0 |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Front panel connector | Yes |
| TPM connector | Yes |
| Number of water pump connectors | 2 |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| Antenna included | Yes |
| Total number of SATA connectors | 4 |
| 12V power connector | Yes |
| Number of storage drives supported | 6 |
| BIOS memory size | 128 Mbit |
| Serial port headers | 1 |
| RAID levels | 0, 1, 10 |
| PCI Express x4 slots | 1 |
| 2nd M.2 largest key size | 2280 |
| USB 2.0 connectors | 1 |
| PC health monitoring | Fan, Temperature, Voltage |
| Number of EPS power connectors (8-pin) | 1 |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 128 GB |
| Audio connector | Yes |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Number of CPU fan connectors | 1 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Power fan connector | Yes |
| Parallel connector | Yes |
| 1st M.2 largest key size | 22110 |
| Number of RGB LED pin headers | 5 |
| Number of Parallel ATA connectors | 1 |
| Digital audio optical out | 3 |
| Maximum internal memory per slot | 32 GB |
| Bundled software | Norton Internet Security LAN bandwidth management software |
| Compatible operating systems | Windows 10 64-bit |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| 2nd M.2 highest PCI Express generation | 3.0 |
| Supported memory clock speed (max) | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Batteries included | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Height | 35 mm |
| Width | 244 mm |
| Country of origin | China |
| Package height | 68 mm |
| Power source type | ATX |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Product colour | Brown |
| Products per shipping (inner) case | 1 pc(s) |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package weight | 10.9 kg |
| Depth | 24.4 mm |
| Format | Micro-ATX |
| Producator | GIGABYTE |
| Garantie | 36 |
