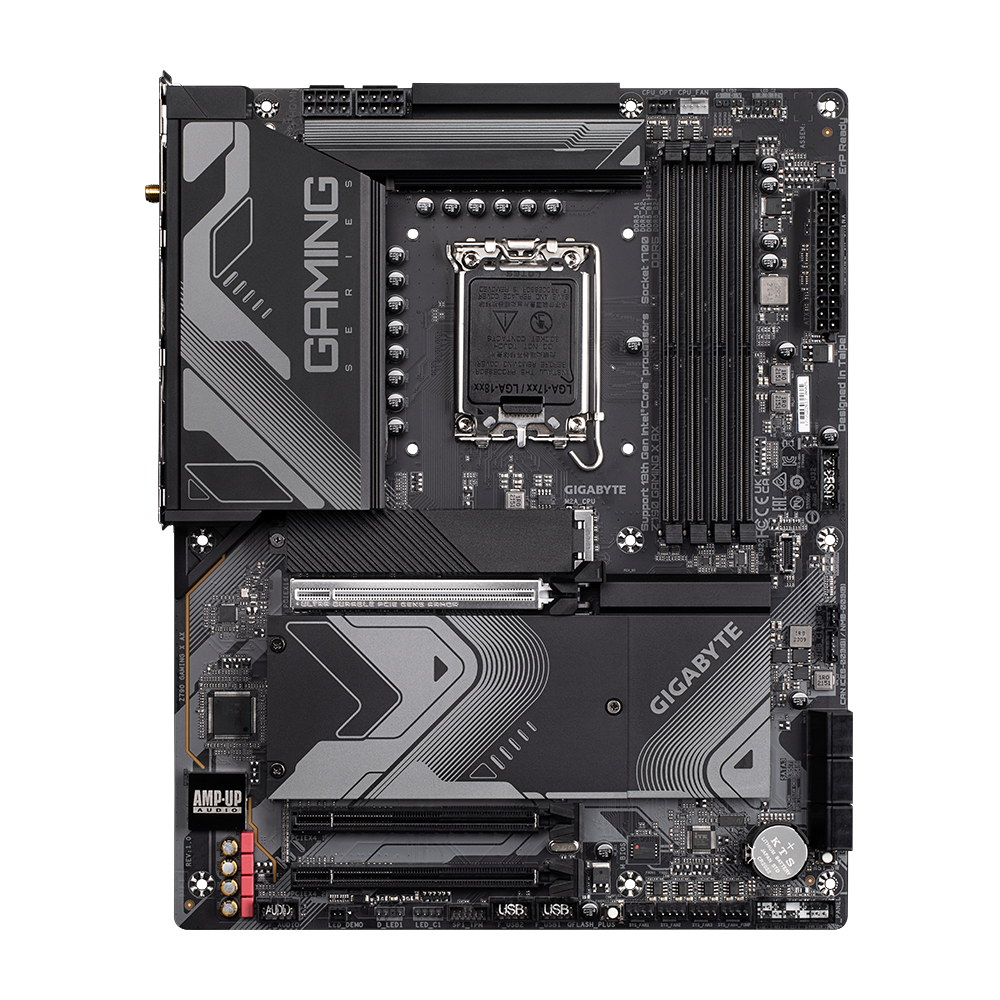

Placa de baza Gigabyte Z790 GAMING X AX, LGA 1700,
1.649,25 lei inclusiv TVA
Stoc epuizat
Placa de baza Gigabyte Z790 GAMING X AX LGA 1700, Z790 Express Motherboard – 4x DDR5 – M.2 PCIe 4.0 – USB 3.2 – PCI-Express 5.0 16x – LAN 2.5 GbE – Wi-Fi 6E
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | DP |
| Wi-FI | Yes |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| USB connector type | USB Type-A, USB Type-C |
| Memory channels | Dual-channel |
| Processor manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Supported storage drive types | HDD & SSD |
| S/PDIF out port | Yes |
| Maximum internal memory | 192 GB |
| HDCP | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Parallel processing technology support | Crossfire |
| Model Chipset | Z790 |
| Gaming | Da |
| Format | ATX |
| Soclu Procesor | Socket 1700 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 192 GB |
| Tip slot interfata grafica | PCIe 5.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Da |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 4 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | ECC & Non-ECC |
| RAID levels | 0, 1, 5, 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 192 GB |
| Maximum resolution | 4096 x 2304 pixels |
| Thunderbolt headers | 2 |
| 12V power connector | Yes |
| Motherboard chipset | Intel Z790 Express |
| Supported memory clock speed (max) | 7600 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| Number of M.2 (M) slots | 4 |
| Number of SATA III connectors | 6 |
| PCI Express x16 slots | 3 |
| Number of HDDs supported | 6 |
| Number of storage drives supported | 10 |
| Total number of SATA connectors | 6 |
| Microphone in | Yes |
| Bluetooth | Yes |
| Product colour | Black |
| Batteries included | Yes |
| Bluetooth version | 5.3 |
| Ethernet LAN (RJ-45) ports | 1 |
| Height | 35 mm |
| Cables included | SATA |
| Country of origin | China |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Headphone outputs | 2 |
| Package weight | 2.16 kg |
| Width | 30.5 mm |
| Depth | 24.4 mm |
| Producator | GIGABYTE |
| Garantie | 36 |
