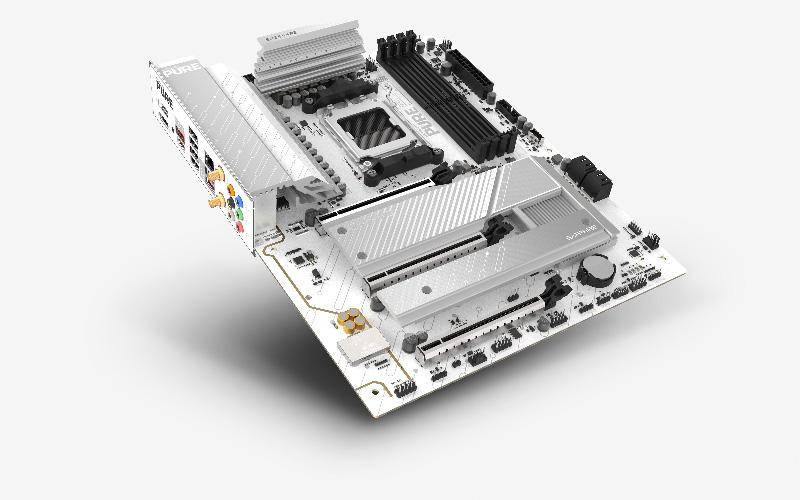

Placa de baza Sapphire PURE B850A WIFI
1.052,39 lei TVA
7 în stoc
Placa de baza Sapphire PURE B850A WIFI
| PCI | 2 |
|---|---|
| Video-Connection | VGA/HDMI |
| Wi-FI | Yes |
| PCI-Ex16 | 1 |
| Onboard-CPU | Yes |
| Component for | PC |
| USB connector type | USB Type-A, USB Type-C |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Processor manufacturer | AMD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| Audio output channels | 7.1 channels |
| Line-in | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| Audio Chip | Realtek ALC897 |
| Supported storage drive types | HDD & SSD |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Sloturi memorie | 4 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Gaming | Nu |
| HDMI | Da |
| Thunderbolt | Nu |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Motherboard chipset family | AMD |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Number of storage drives supported | 7 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| WiFi-AP antenna jack | 2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard form factor | ATX |
| Number of M.2 (M) slots | 3 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Antenna included | Yes |
| 12V power connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Supported memory clock speed (max) | 8000 MHz |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of chassis fan connectors | 3 |
| LAN controller | Dragon RTL8125BG |
| Motherboard chipset | AMD B850 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| USB 2.0 connectors | 1 |
| Number of water pump connectors | 1 |
| Audio connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 3 |
| PCI-Ex1 | 0 |
| RAM-Slots | 4 |
| MB-Format | micro-ATX |
| Tip Memorie | DDR4 |
| Canale audio | N/A |
| RJ-45 LAN | N/A |
| Chipset audio integrat | Realtek |
| USB Type-C | N/A |
| MB-Socket | AM5 |
| Format | ATX |
| Recomandat Gaming | Da |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Microphone in | Yes |
| Bluetooth version | 5.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Product colour | White |
| Headphone outputs | 6 |
| Width | 30.5 mm |
| USB3 | 1 |
| Sloturi M.2 | N/A |
| Soclu Procesor | NA (integrated CPU) |
| Numar sloturi memorie | N/A |
| Memorie maxima | 128 GB |
| Model Chipset | B850 |
| Bluetooth | 5.4 |
| RJ-45 | 1 |
| Interfata grafica | PCI Express x16 5.0 |
| SATA III | 4 |
| USB 2.0 | 4 |
| Socket procesor | AM5 |
| Placa video integrata | Necesita procesor cu tehnologia AMD Radeon Graphics |
| Placa audio integrata | 7.1 Audio |
| Chipset | B850 |
| Producator chipset | AMD |
| Procesoare suportate | AMD Ryzen 7000/8000/9000 Series |
| Memorie Suportata | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Tehnologie: | Dual Channel |
| PCI Express 5.0 | 1 (x16) |
| Header USB 3.0 | Da |
| Suport audio | 7.1 |
| Dimensiuni (L x l, cm) | 30.5 x 24.4 cm |
| Depth | 24.4 mm |
| NGFF (M.2) | 3 |
| DisplayPort | 1 |
| Placa retea integrata | 2.5 Gbps |
| USB 3.2 Gen2 tip A | 3 |
| Chipset audio | Realtek ALC897 |
| Chipset retea | Realtek RTL8125BG |
| BIOS | SAPPHIRE CORE BIOS |
| Alte specificatii | 1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2 |
| Frecvente suportate | Pana la 8000 MHz(OC) |
| PCI Express 4.0 | 2 (x16) (1x x4, 1x x2) |
| USB Tip C | 1x USB 3.2 Gen 2 tip C |
| Audio jacks | 6 |
| Wireless | 802.11 a/b/g/n/ac/ax/be(2×2)2.4 GHz / 5GHz / 6GHz |
| BIOS Flashback | 1 |
| Conectori speciali | 2× Wi Fi Antenna |
| Producator | SAPPHIRE |
| Garantie | 24 |
