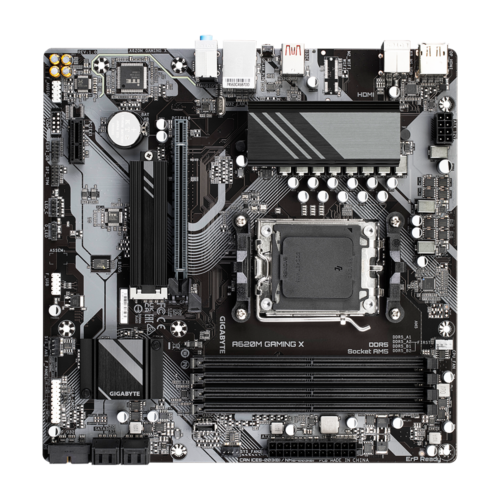

Placa de bază Gigabyte A620M GAMING X AX AM5
491,17 lei
6 în stoc
Placa de baza Gigabyte A620M GAMING X AX AM5, 4x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, mATX
Descoperă mai multe la Craftera
Abonează-te ca să primești ultimele articole prin email.
| PCI | 0 |
|---|---|
| Serial-or-Paralel | No/No |
| Video-Connection | HDMI/DP |
| Wi-FI | No |
| Onboard-CPU | No |
| RAID support | Yes |
| Component for | PC |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet interface type | Gigabit Ethernet |
| Memory channels | Dual-channel |
| Ethernet LAN | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Supported storage drive types | HDD & SSD |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 slots | 1 |
| Maximum internal memory | 192 GB |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Parallel processing technology support | Not supported |
| DVI-D ports quantity | 0 |
| DirectX version | 12.0 |
| Maximum resolution | 4096 x 2160 pixels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Model Chipset | A620 |
| Gaming | Da |
| Format | Micro-ATX (mATX) |
| Soclu Procesor | Socket AM5 |
| Tip Memorie | DDR5 |
| Numar sloturi memorie | 4 |
| Memorie maxima | 192 GB |
| Tip slot interfata grafica | PCIe 4.0 x16 |
| Chipset audio integrat | Realtek |
| Canale audio | 7.1 |
| Wireless | Nu |
| Bluetooth | Nu |
| USB Type-C | Da |
| HDMI | Da |
| Thunderbolt | Nu |
| Sloturi M.2 | 1 |
| RJ-45 LAN | 1 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| PS/2 ports quantity | 1 |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS jumper | Yes |
| Supported memory types | DDR5-SDRAM |
| Number of HDDs supported | 4 |
| Front panel connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| ACPI version | 5.0 |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Lithium weight per battery | 0.07 g |
| Maximum internal memory supported by processor | 192 GB |
| Total number of SATA connectors | 4 |
| 12V power connector | Yes |
| ECC сompatibility | Non-ECC |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Bundled software | Norton Internet Security |
| RAID levels | 0, 1, 10 |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| USB 2.0 connectors | 1 |
| Number of storage drives supported | 5 |
| Motherboard chipset | AMD A620 |
| Supported memory clock speed (max) | 4400,4800,5200,5600,6000,6200,6400,6800,7000,7200,7600,7800,8000 MHz |
| Microphone in | Yes |
| Height | 35 mm |
| Cables included | SATA |
| Width | 244 mm |
| Headphone outputs | 3 |
| Country of origin | China |
| Package height | 68 mm |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Product colour | Brown |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package weight | 892 g |
| Depth | 24.4 mm |
| Producator | GIGABYTE |
| Garantie | 36 |
