Lifecycle

Obsolete Date 30-11-2026

Specifications

Weight 27.117 lb
Product dimensions (metric) 18.3 x 63 x 60 cm
Product dimensions (imperial) 7.21 x 24.8 x 23.62 in
Weight 12.3 kg
System fan features 2x Standard Fans
Processor name Intel® Xeon® Bronze 3508U (8 core, 2.10 GHz, 22.5 MB L3, 125W)
Included memory 32 GB (1×32 GB, 5600 MT/s)
Included drives 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD
Processor cache 22.5 MB L3
Processor number 1 processor included
Expansion slots 2 to 4 x16 PCIe Gen5 and 1 x16 OCP3 slot. Refer to the QuickSpecs for more detail.
Form factor 4.5U Tower. Optional standalone Tower-to-Rack conversion kit (P47394-B21) to convert the unit to a 5.5U Rack-mount server.
Warranty 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage for your product can be purchased locally. For information on availability of service upgrades and the cost for these service upgrades, refer to the HPE website at https://www.hpe.com/support.
Security UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. TPM (Trusted Platform Module) 2.0 support. Front bezel key-lock feature, Intrusion cable (Optional), Padlock slot and Kensington Lock slot support. For full security features refer to the QuickSpecs.
Power supply type 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Accelerators Optional: Supports NVIDIA® L4/RTX 4000 Ada Graphics Accelerator for HPE, pending configuration
Infrastructure management Included: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional: HPE iLO Advanced, HPE OneView Advanced (require licenses) and HPE Compute Ops Management. Refer to the iLO 6 User Guide
Storage controller Embedded Intel VROC SATA/NVMe
Optical drive type Optional DVD-ROM or DVD-RW. Optional via ODD cable Kit. Optional Half-Height RDX, up to 1. Refer to the QuickSpecs for more detail.
Network controller Embedded 2-Port 1GbE BCM5720 networking ports
Memory type HPE DDR5 Smart Memory
Processor speed 2.10 GHz
Processor core available 8 core

Quickspecs

Overview

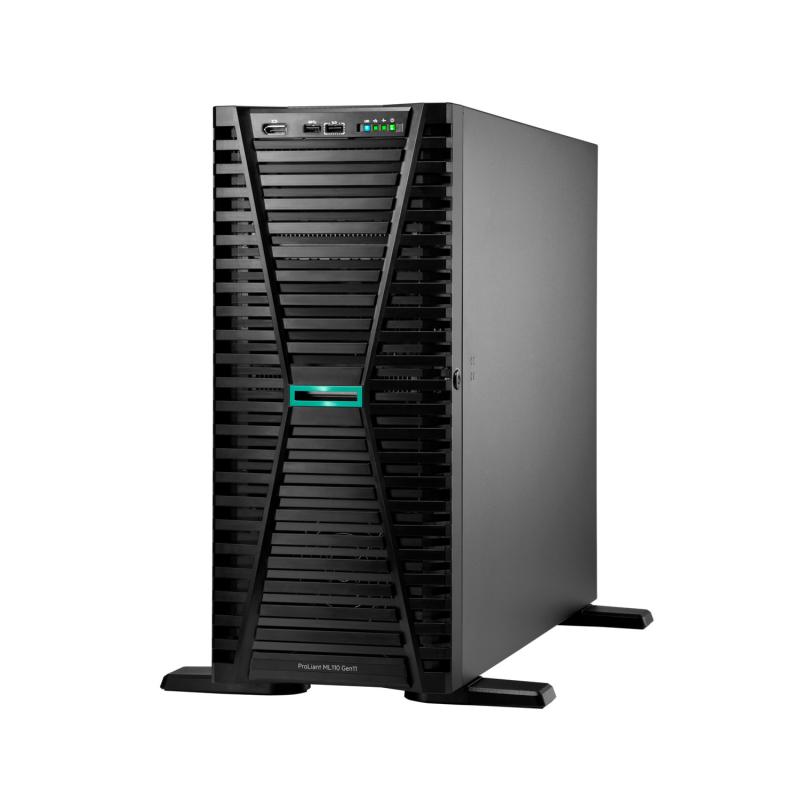

Are you searching for an affordable tower server with enterprise-class reliability and performance to meet the requirements of your growing business? The HPE ProLiant ML110 Gen11 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the 4th and 5th Gen Intel® Xeon® Scalable processor, HPE DDR5 SmartMemory with a maximum capacity of 1536 GB, 4 x16 PCIe Gen5 slots, 1 x16 OCP3 slot, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 5.5U of rack space. The HPE ProLiant ML110 Gen11 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.

What’s new

Increased memory bandwidth to 5600 MT/s[1], performance and lower power requirements with up to 1.5 TB DDR5 memory capacity with 16 DIMM slots.
Advanced data transfer rates from the PCIe Gen5 serial expansion bus, support up to 4 standard PCIe Gen5 x16 slots and 1 OCP 3.0 x16 slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability, RAID1 protected M.2 NVMe boot option.
Support NVIDIA® RTX 4000 Ada Graphics Accelerator and L4 24GB PCIe Accelerator
Powered by 4th and 5th Gen Intel® Xeon® Scalable Processors that support up to 32 cores, 185W TDP.

Features

Customized Performance for your Workloads: Accelerated, Open, and Efficient
Trusted Security by Design: Uncompromising, Fundamental, and Protected

These experiences are engineered and built into all HPE ProLiant Gen11 servers, whether purchased as physical servers or consumed as-a-service using GreenLake Flex Solutions as your compute and storage demands grow.

Simplify and secure server management from edge to cloud with HPE Compute Ops Management. HPE Compute Ops Management is an as-a-service compute management experience that delivers greater simplicity, agility, and speed across your entire compute landscape, globally.

HPE ProLiant ML110 Gen11 server uses the silicon root of trust to anchor the firmware of HPE ASIC, creating an immutable fingerprint for the Intel® Processor that must be matched exactly before the server will boot. This verifies that malicious code is contained, and healthy servers are protected.

HPE ProLiant Gen11 servers continuously protect healthy servers at the edge by providing rapid detection of security-compromised servers, even to the point of not allowing them to boot if it identifies and contains malicious code, with IDevID certificates installed by default.

HPE ProLiant Gen11 servers provide automated recovery from a security event, including restoration of validated firmware, and facilitating recovery of the operating system, application, data connections, and providing a fast path to bring a server back online and into normal operations.

Transform business operations and pivot your team from reactive to proactive with global visibility and insight through a single console.

Automate tasks for efficiency in deployment, instant scalability, and seamless, simplified support and lifecycle management, effectively reducing tasks and shortening maintenance windows.

Intuitive Cloud Operating Experience: Simple, Unified, and Automated

HPE ProLiant ML110 Gen11 servers are engineered for your hybrid world. HPE ProLiant Gen11 servers simplify the way you control your business’s compute—from edge to cloud—with a cloud operating experience.

Services provided under Operational Services include: HPE Flexible Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services and multi-vendor coverage.

HPE IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Benefit from real-time operational feedback on server performance plus recommendations for fine-tuning BIOS settings to customize for changing business needs.

Industry-leading Services and Ease of Deployment

The HPE ProLiant ML110 Gen11 server comes with a complete set of HPE Services, delivering confidence, reducing risk, and helping customers realize agility and stability.

HPE Services simplify all stages of the IT journey. Advisory and Transformation Services professionals understand customer challenges and design an effective solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.

The HPE ProLiant ML110 Gen11 server is an excellent choice for compute and data storage balanced workloads (IT infrastructure, Data Management, VDI, ERP/CRM) requiring outstanding performance, network and I/O bandwidth.

Harness advanced compute performance. HPE ProLiant ML110 Gen11 server is powered by 4th and 5th Gen Intel® Xeon® Scalable Processors that support up to 32 cores at 185W TDP.

Enjoy advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 4 x16 PCIe Gen5 and 1 x16 OCP slots to improve I/O throughput and reduce latency.

Utilize 16 DIMM slots for up to 1.5 TB DDR5 memory with increased memory bandwidth and performance, and lower power requirements.

From silicon to software, from factory to cloud, and from generation to generation, HPE ProLiant Gen11 is engineered with a fundamental security approach to defend against increasingly complex threats through an uncompromising commitment to constant security advancements that are built into our DNA.

Compatible products

Documents

An affordable tower server built with small and medium business needs in mind

[1] DDR5 5600 MT/s memory is limited to support with 5th Gen Intel® processors. The maximum memory speed is a function of the memory type, memory configuration, and processor model.
