HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 740W

Name: HPE Aruba Networking CX 6200F 48G Class4 PoE 4SFP+ 740W
SKU: JL728A
Price: 51387.37 RON
Availability: OutOfStock

51.387,37 lei inclusiv TVA

Stoc epuizat

SKU: JL728A Categorie: Switch-uri

Lifecycle

Obsolete Date 30-06-2025
End of support date 31-12-2104

Specifications

Stacking capabilities 8 members
Weight 5.10 kg
Product dimensions (imperial) 1.73 x 17.4 x 12.9 in
Product dimensions (metric) 4.39 x 44.2 cm x 32.7 cm
Memory and processor Quad Core ARM Cortex™ A72 @ 1.8 GHz
Power consumption 76W at 230 VAC
Weight 11.24 lbs
Throughput Up to 130.9 Mpps
Routing/switching capacity 176 Gbps
Latency 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec
Ports 48x 10/100/1000BASE-T Class 4 PoE ports 4x 1/10G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x OOBM 1x USB Type-A Host port 1x Bluetooth Adapter to be used with Aruba CX Mobile App
Power supply name Fixed power supply (950W) Up to 740W of Class 4 PoE Power
PoE capability 740W
Input voltage 100V-120V/200V-240V
Warranty Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ product-warranties/ for warranty and support information included with your product purchase.

Quickspecs

Overview

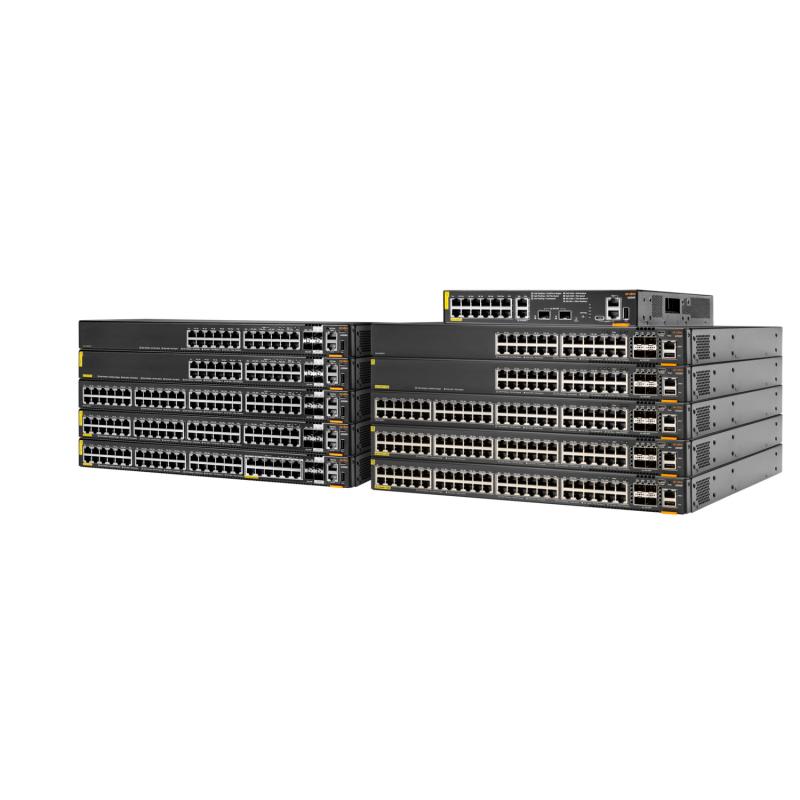

The Aruba CX 6200 Switch Series is a next-gen family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6200 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. Make your network ready for tomorrow’s unpredictable demands with a powerful Aruba Gen7 ASIC architecture to deliver fast, non-blocking performance. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series has built-in high speed uplinks and up to 740W of PoE to support IoT devices such as security cameras and wireless APs.

What’s new

Aruba Dynamic Segmentation enables enhanced security and simple access for users and IoT.
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.
Enterprise-class connectivity with support for ACLs, robust QoS, and common protocols such as static and Access OSPF routing.
Scalability with 8 member VSF stacking. 24 and 48-port fixed and modular switch models can stack together for up to 384 ports.
Models include modular switches with 1/10GbE uplinks, LRM, and MACSec 256, fixed switches with either 1/10GbE SFP+ or 1GbE SFP uplinks, and options that support 30W to 60W of PoE per port.
Intelligent monitoring and visibility via Aruba Network Analytics Engine. Aruba NetEdit support for automation, configuration and verification. One touch deployment using the Aruba CX Mobile App.

Features

Automation and Analytics

The HPE Aruba Networking CX 6200 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health.

Switch-to-switch tunnels with VXLAN for low-latency and high performance use cases.

Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency.

The HPE Aruba Networking CX 6200 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that delivers very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications.

Performance and Power

Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application, and security related issues easily through the use of Python agents and REST APIs.

The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues.

Aruba NetEdit introduces automation that allows for rapid network-wide changes, and ensures policy conformance post network updates. Intelligent capabilities include search, edit, validation (including conformance checking), deployment, and audit features.

The Aruba CX Mobile App simplifies connecting, stacking, and managing HPE Aruba Networking CX 6200 switches. Switch information can be imported into Aruba NetEdit for simplified configuration management and to continuously validate the conformance of configurations anywhere in the network.

Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike.

The HPE Aruba Networking CX 6200 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures.

Smarter Segmentation

Deploy wireless access points and IoT devices with HPE Aruba Networking CX 6200 models that support up to 1440W IEEE 802.3at Class 6 Power over Ethernet for up to 60W per port.

Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front-plane stacking. Create 8 member stacks using built-in SFP+ ports with flexibility to create stacks that span longer distances using long-range transceivers.

Compatible products

Documents

Stackable	Yes
Jumbo frames support	Yes
Link aggregation	Yes
Power supply included	Yes
Processor frequency	1800 MHz
Power over Ethernet (PoE)	Yes
Rack mounting	Yes
VLAN support	Yes
Quality of Service (QoS) support	Yes
Flash memory	16 MB
Switch type	Managed
10G support	Yes
Port mirroring	Yes
Form factor	1U
Access Control List (ACL)	Yes
Auto MDI/MDI-X	Yes
Flow control support	Yes
Rate limiting	Yes
IGMP snooping	Yes
Memory type	DDR4-SDRAM
Internal memory	8000 MB
Installed SFP modules quantity	0
Spanning tree protocol	Yes
Switch layer	L3
IP routing	Yes
MAC address table	16000 entries
Storage relative humidity (H-H)	15 – 90%
Basic switching RJ-45 Ethernet ports quantity	48
Switching capacity	176 Gbit/s
Console port	USB
Transmission distance (max)	10 km
Latency (1 Gbps)	2.28 µs
Latency (10 Gbps)	1.46 µs
Packet buffer memory	8 MB
Physical stacking (units)	8
Processor model	ARM Cortex-A72
Throughput	130.9 Mpps
Total Power over Ethernet (PoE) budget	740 W
Porturi RJ-45:	28+
Viteza transfer	Gigabit
Porturi SFP	3-4
Montare in rack	Da
SFP module slots quantity	4
Management	Da
PoE	Da
Built-in processor	Yes
Product colour	Black
Harmonized System (HS) code	85176990
Height	327 mm
Operating temperature (T-T)	0 – 45 °C
Storage temperature (T-T)	-40 – 70 °C
Operating relative humidity (H-H)	15 – 95%
Power source	AC
AC input voltage	200 – 240 V
Depth	442 mm
Weight	5.1 kg
Power consumption (typical)	950 W
Width	43.9 mm
Producator	ARUBA NETWORKS
Garantie	999
