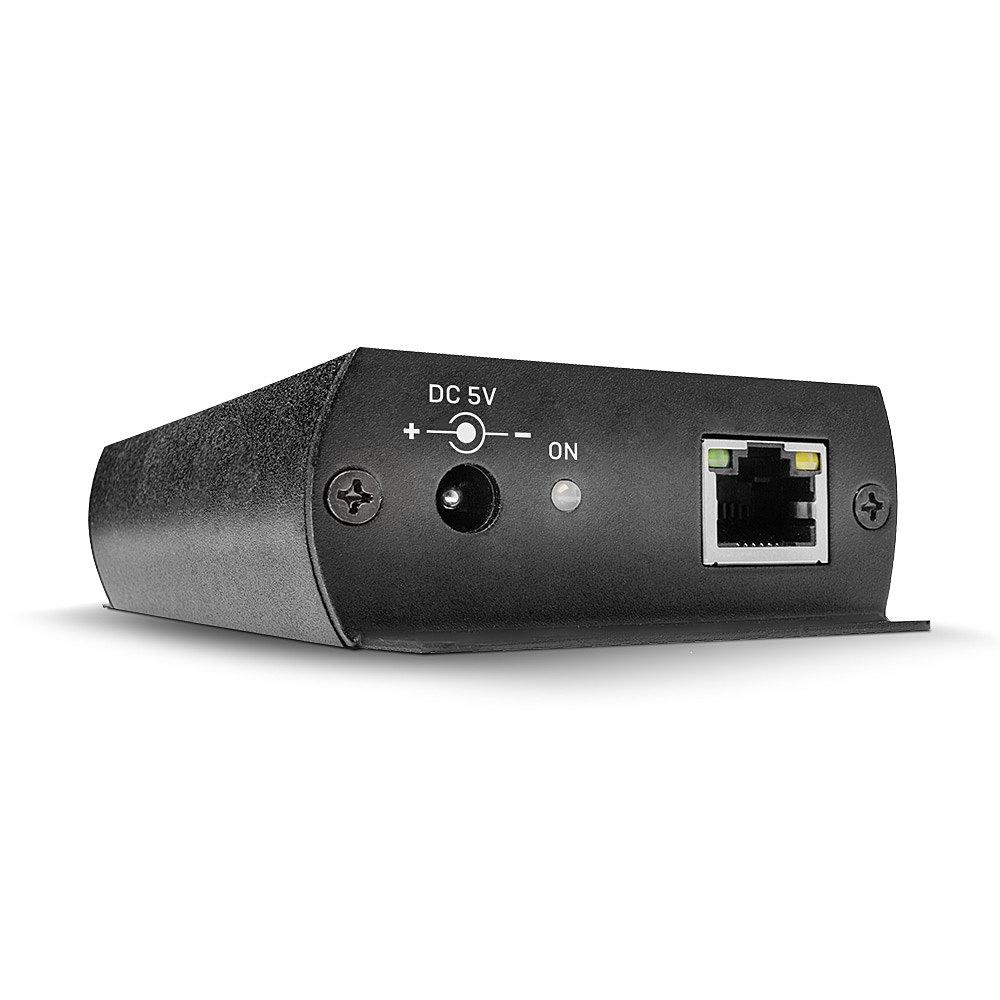

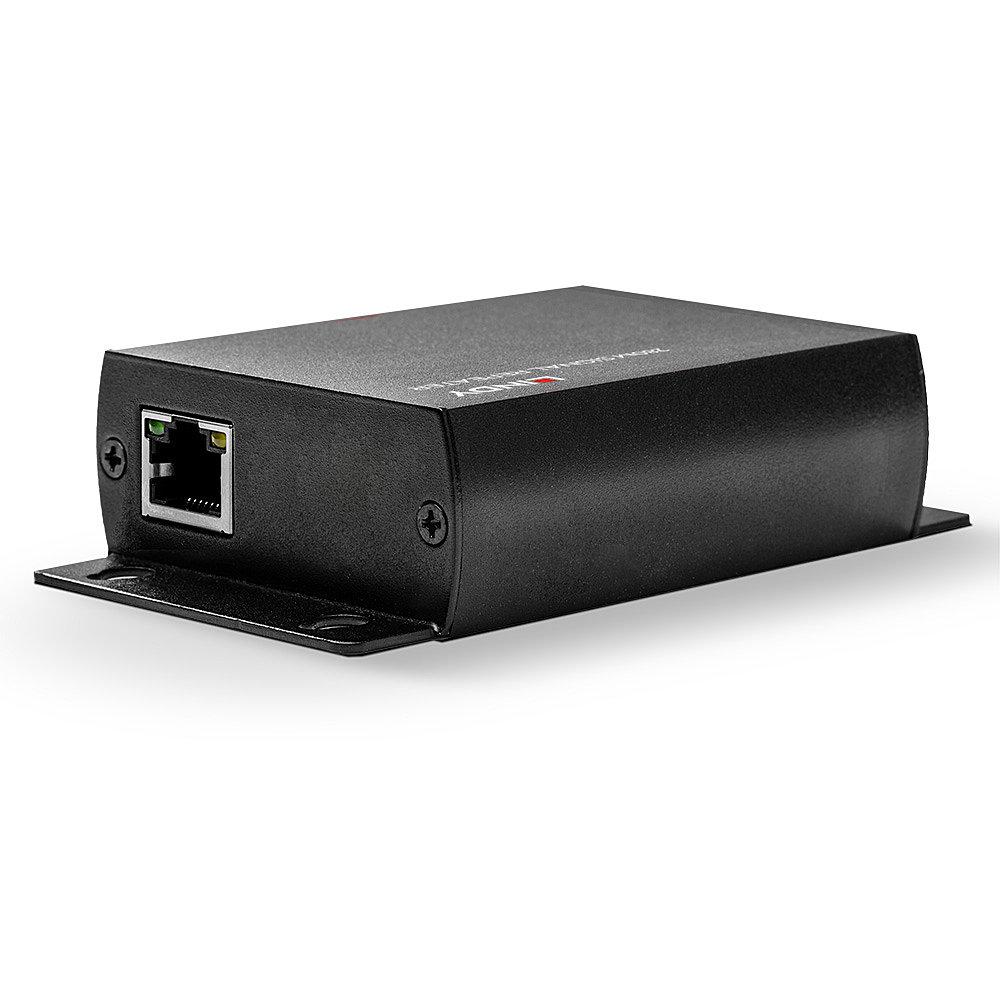

Lindy LY-39245 KVM Extender 140m Cat.6 DVI-D, USB, Audio &
4.807,45 lei inclusiv TVA
Stoc epuizat
Lindy 140m Cat.6 DVI-D, USB, Audio & RS232 KVM Extender Description Extends DVI-D, USB 2.0, Audio and RS-232 up to 140m using only one Cat.6 cable Supports DVI Single Link resolutions up to 1920×1200 4 USB 2.0 Type A ports to connect keyboard, mouse and mass storage devices Easy, user friendly installation – no software required Technical details Specifications AV Interface: DVI-D Console Interface: USB Interfaces Standard: DVI-D Single Link, USB 2.0 Supported Bandwidth: 850Mbps Maximum Distance: 140m (459.31ft) Maximum Resolution: 1920×1200@60Hz HDCP Support: 1.4 Supported Audio: Analogue Stereo & Mono Separate Audio Ports: 2 x 3.5mm (Female) Transmission Protocol: – Transmission Medium: Cat.6 Laser Class (only for Fibre): – Wavelength (only for Fibre): – Special Features: EDID management, point-to-point and LAN connection and RS-232 signal extension Connectors Transmitter KVM Interfaces: DVI-I in (Female), DVI-I loopout (Female), USB Type B (Female), 2 x 3.5mm (Female) Transmitter Extension Port: 1x RJ-45 (Female) Receiver Console Interface: DVI-I (Female), 4 x USB Type A (Female), 2 x 3.5mm (Female) Receiver Extension Port: 1 x RJ-45 (Female) Bi-directional Ports: 3.5mm RS-232 (Female) Other Interfaces: – Power: 5.5/2.5mm DC socket Physical Properties Dimensions (approx.) WxDxH: 125x140x30mm (4.92×5.51×1.18in) (each unit) Housing Material: Metal Net Weight: 1.27kg (2.8lb) Operating Temperature: -20°C – 60°C (-4°F – 140°F) Storage Temperature: -20°C – 85°C (-4°F – 185°F) Humidity: 0 – 95% RH (non-condensing) Power Requirements: 5VDC 2.6A Colour: Black Miscellaneous Packaging Type: Carton Box Packaging Dimensions: 355x195x60mm (13.98×7.68×2.36in) Gross Weight: 1.52kg (3.35lb) Warranty (Years): 2 Certification: CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package Content Transmitter unit Receiver unit 1 x USB Type A/B cable, 1.45m 1 x 3.5mm to RS232 DB9 Male cable, 1.80m 1 x 3.5mm to RS232 DB9 Female cable, 1.80m 2 x Multi-Country Power Supply (EU, UK, US, AUS) 8 x Screws and Dowels Lindy Manual Purchasing Information No.: 39245 EAN: 4002888392457 https://www.lindy-international.com/140m-Cat-6-DVI-D-USB-Audio-RS232- KVM-Extender.htm?websale8=ld0101.ld021102&pi=39245&ci=10
| Material | Metal |
|---|---|
| Connectivity technology | Wired |
| Maximum refresh rate | 60 Hz |
| USB 2.0 ports quantity | 4 |
| PC Audio in | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| USB port type | USB Type-A/USB Type-B |
| KVM-Ports | 4 |
| Rezolutie | 1920 x 1200 |
| Interfata HDMI | Nu |
| Numar porturi HDMI | N/A |
| Numar porturi USB | 3-4 |
| Maximum transfer distance | 140 m |
| Cable types supported | Cat6 |
| Transmitter video port type | DVI-I |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver local video port type | DVI-I |
| RJ-45 ports quantity (receiver) | 1 |
| RJ-45 ports quantity | 2 |
| Transmitter width | 12.5 cm |
| Transmitter depth | 14 cm |
| Transmitter height | 3 cm |
| Receiver width | 12.5 cm |
| Receiver depth | 14 cm |
| Receiver height | 3 cm |
| Screwdriver included | Yes |
| Power requirements | 5VDC 2.6A |
| Product colour | Black |
| AC adapter included | Yes |
| Harmonized System (HS) code | 84733080 |
| Operating temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Manual | Yes |
| Package height | 60 mm |
| Package depth | 195 mm |
| Package weight | 15.2 kg |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Weight | 1.27 kg |
| Package width | 355 mm |
| Cables included | Audio (3.5mm), RS-232, USB Type-A to USB Type-B |
| Producator | LINDY |
| Garantie | 24 |
